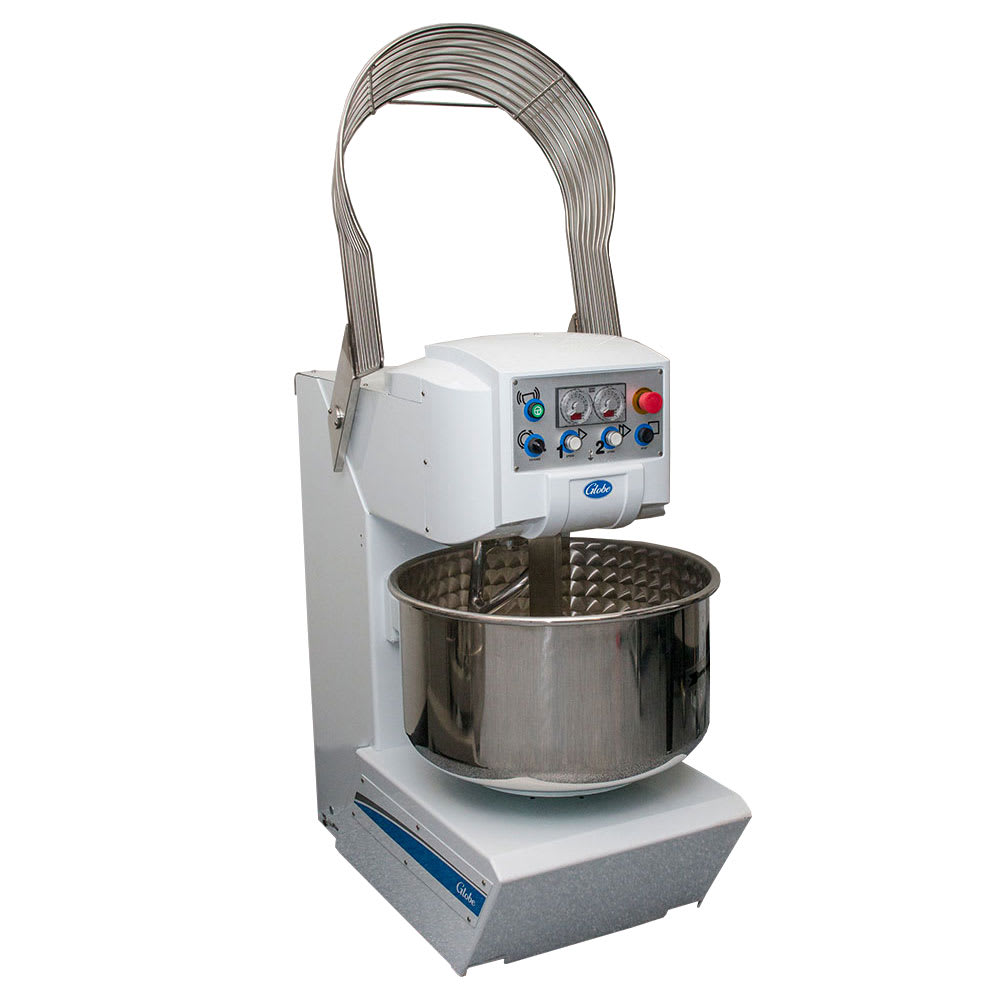

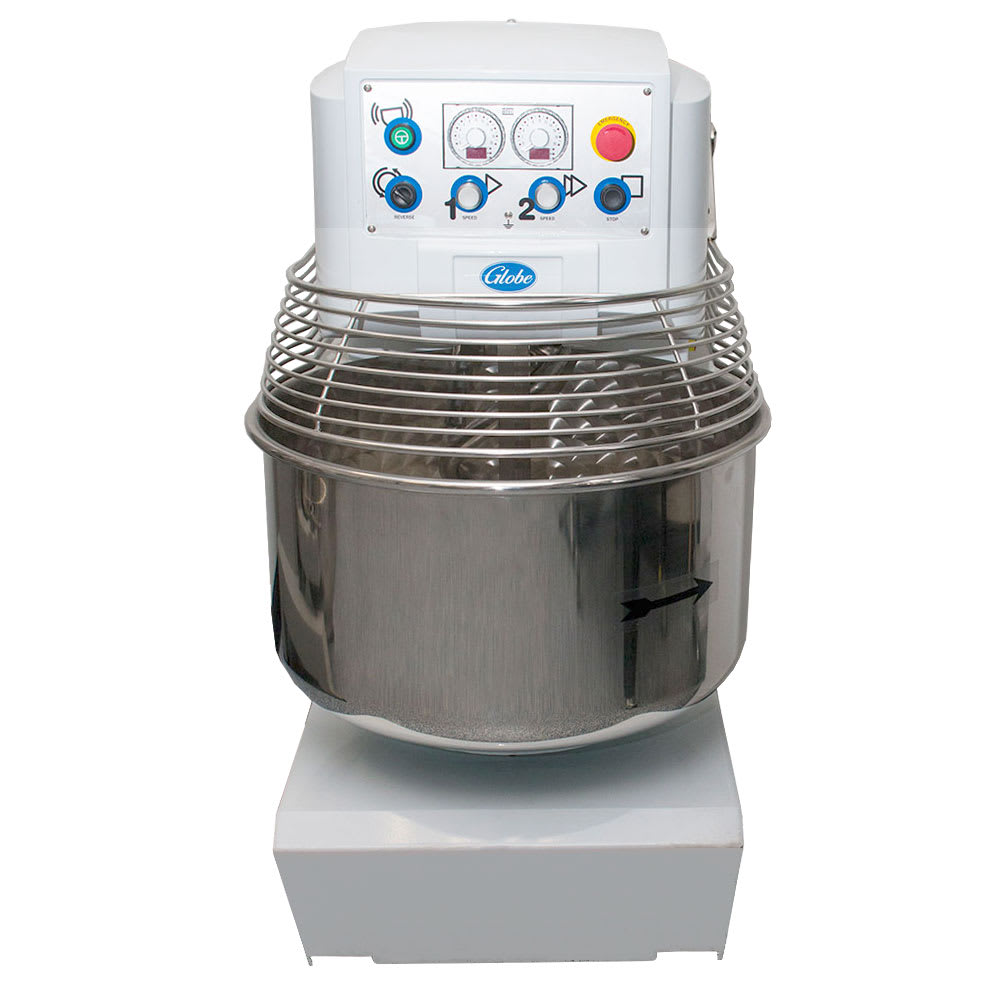

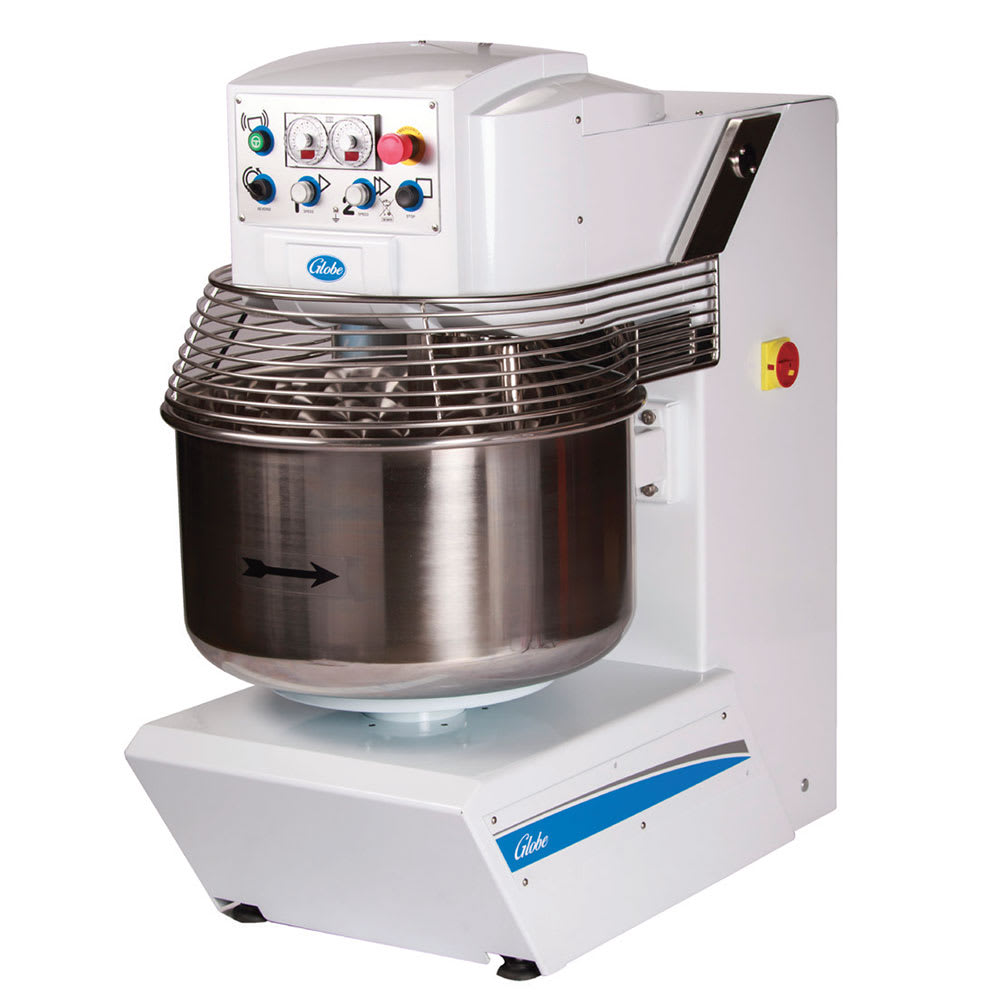

Globe GSM130 100 qt Spiral Mixer – Floor Model, 208v, 3ph

Controlled manually or automatically with two fixed speeds, the Globe GSM130 spiral mixer automatically shifts from first to second speed with dual electronic, 20-minute timers. For maximum power, this unit has two high-torque motors for the bowl and the dough hook. The reversible bowl drive enables this machine to mix smaller batches when necessary. Dough is simple to remove from this unit using the bowl jog control, promoting quick turnaround.

The Globe GSM130 spiral dough mixer’s bowl guard, ball bearing bowl drive, and bowl are made of stainless steel for durability and swift cleaning. The bowl guard enables operators to observe and add ingredients. Spiral mixing technology keeps heat and air in the dough to a minimum. This unit is made of metal with a cast aluminum top cover and can be repositioned using the front and rear casters.

Product Details

• 2 speeds
• 2 powerful motors for the bowl and dough hook
• (2) 20-min. timers
• Automatically shifts from 1^st to 2^nd speed

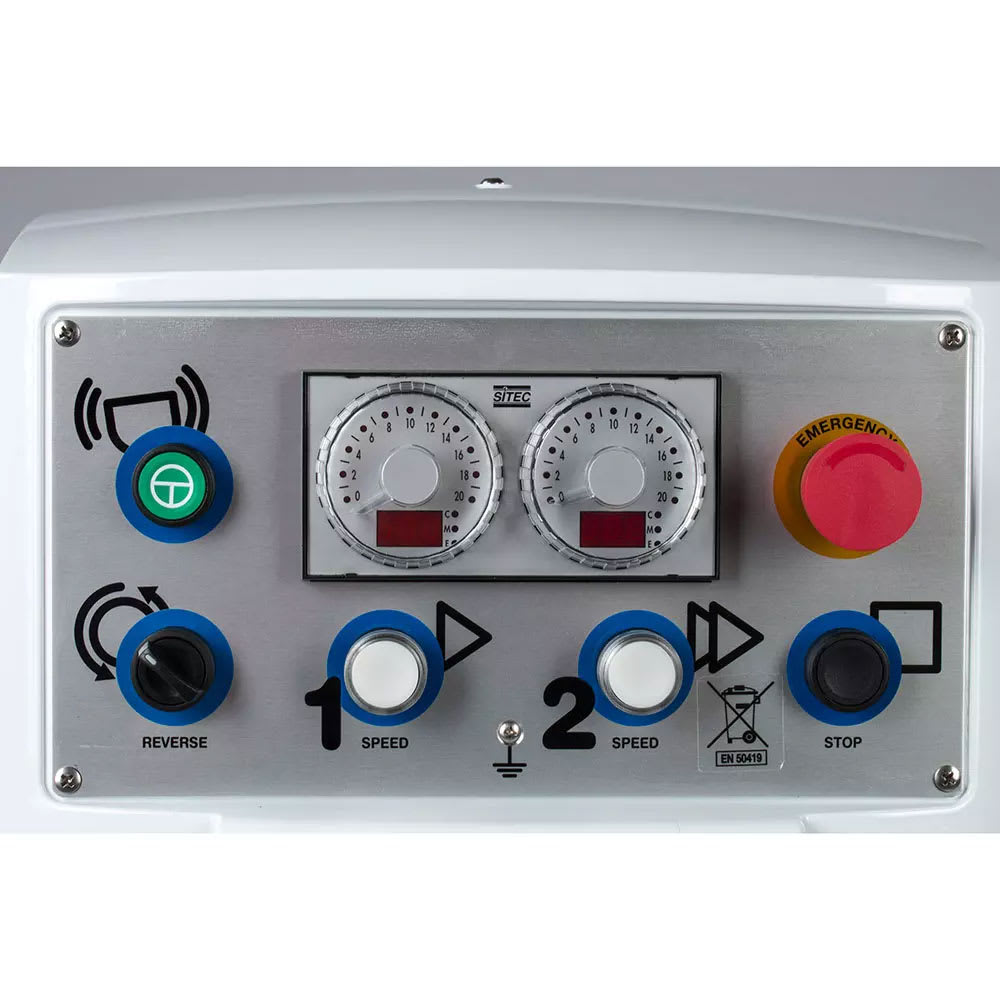

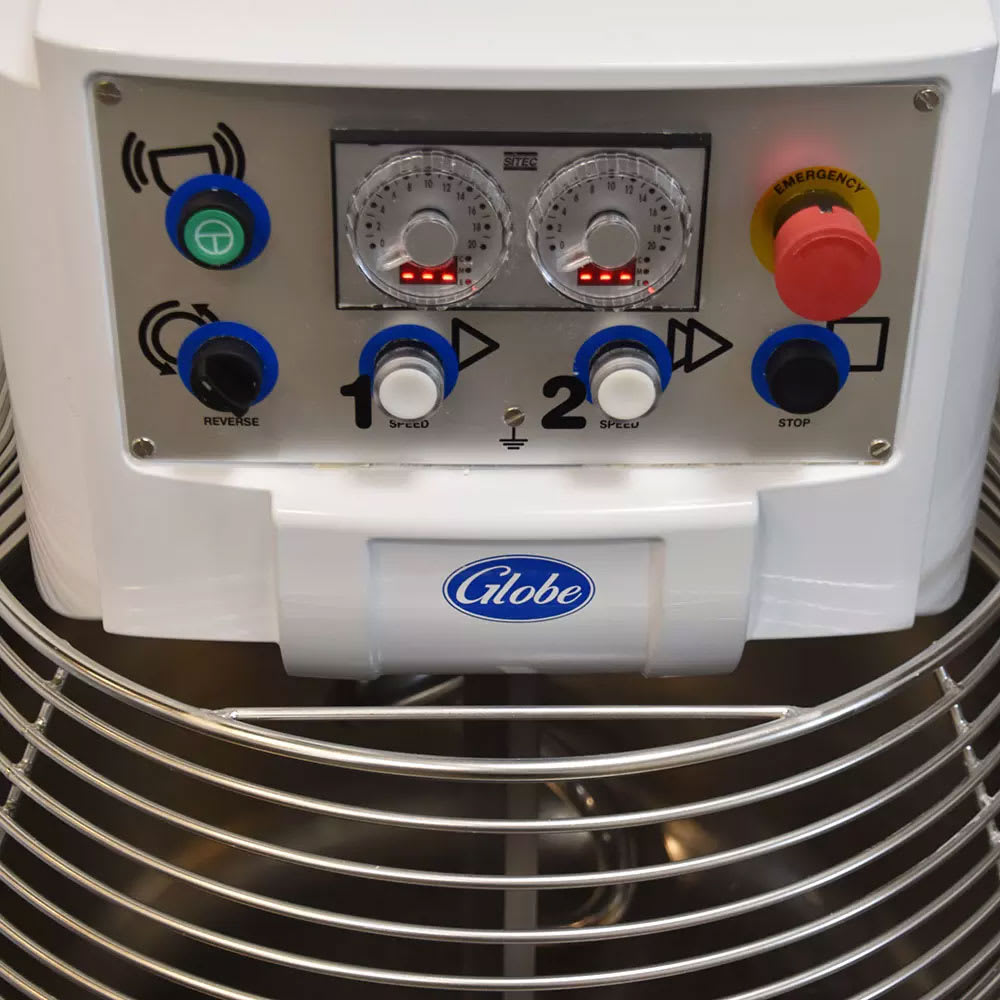

• Manual and automatic controls
• Bowl jog for removing dough
• Reversible bowl drive for smaller batches
• Bowl guard enables users to monitor and add ingredients during use
• Metal construction
• Cast aluminum top cover

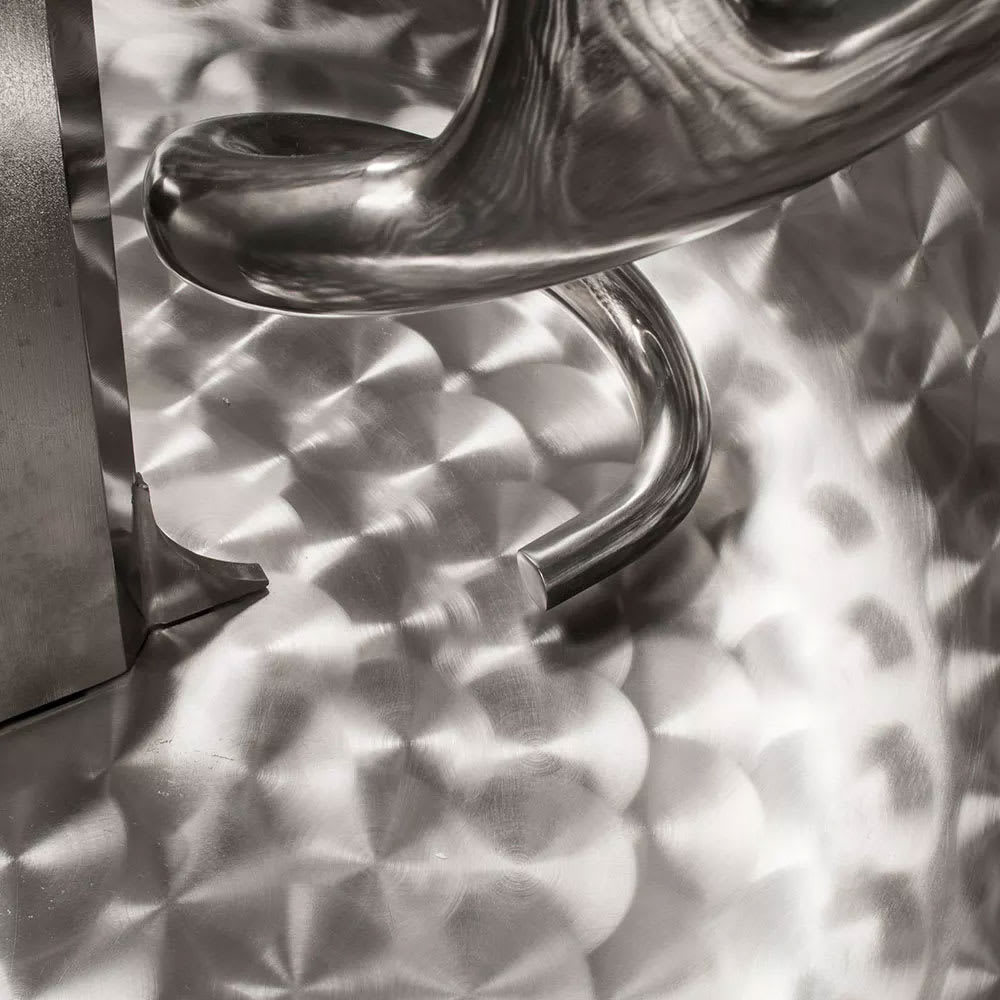

• Diamond-finished, stainless steel bowl
• Steel support bar
• Durable, stainless steel ball bearing bowl

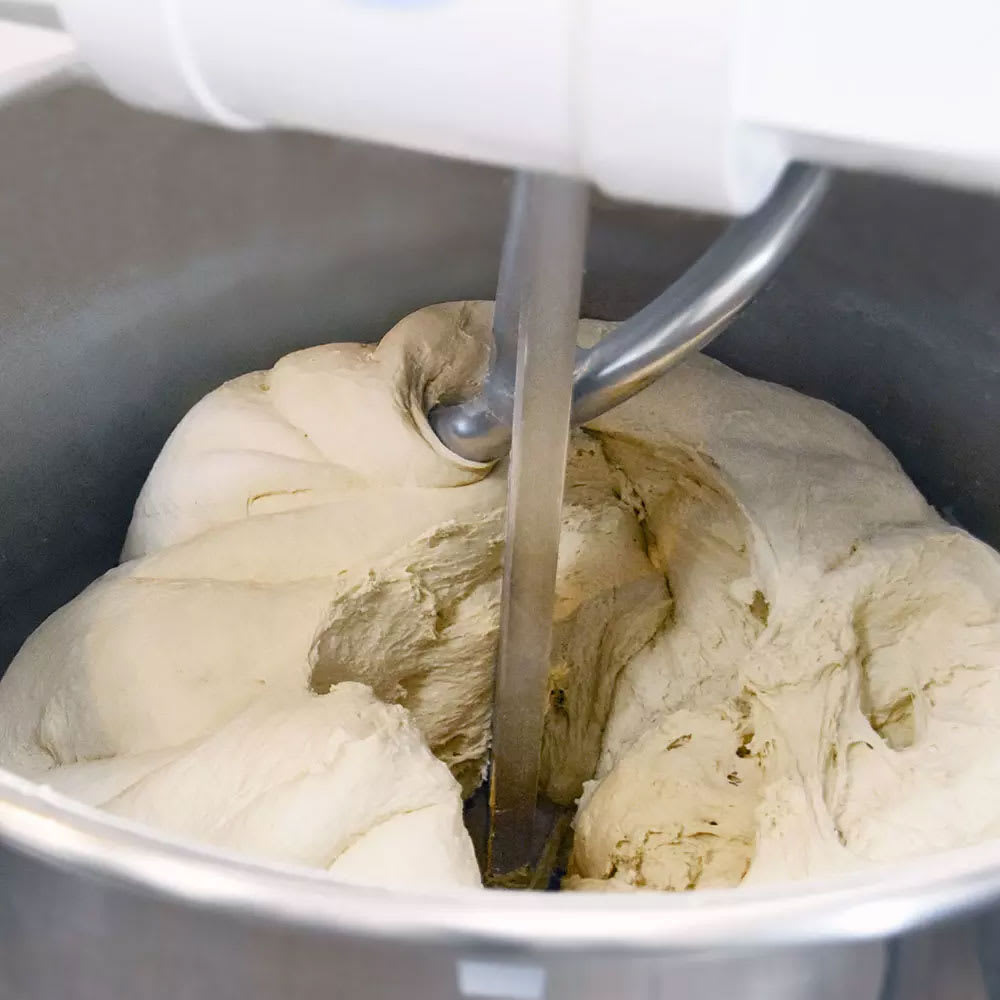

• Dough hook for large batches
• Spiral mixing technology limits heat and air in the dough
• Front and rear casters

Dimensions & Utilities

• 25.08 in. W x 43.7 in. D x 46.85 in. H (70.7 in. H with the bowl guard fully opened)
• 23 A, ³/₄ HP
• 208 V/60 Hz/3 ph, 10.5-ft. power cord (plug required)

From The Manufacturer

Spiral Dough Mixer, 130 lbs. capacity, stainless steel bowl, stainless steel wire-form bowl guard, spiral dough hook, front-mounted dual 20-minute digital timer controls, heavy-duty breaker bar and bowl jog feature, heavy-duty metal construction, FDA-approved white powder coat, stainless steel ball bearing bowl drive, 3/4 HP / 25 RPM bowl motor, 2 HP / 100 RPM 1st speed hook motor, 4 HP / 200 RPM 2nd speed, 208v/60/3-ph, 23.0 amps, cETLus, ETL-Sanitation (requires 3-phase NEMA L15-20P plug – not included)

*Image may not depict product color, inclusions or accessories.
