Garland MOQU14000720 Drop-In Commercial Induction Range, 208v/3ph

The Garland MOQU14000720 drop-in commercial induction range has one Ceran glass cooktop, four cook zones with coils, and two induction generators. These generators are enclosed in distinct housings and all connections are accessible from the outside. To facilitate installation, a cable kit with an RJ45 cable is included.

To cook various foods on the Garland MOQU14000720 induction range, its power level is adjustable between 1 and 12. The control unit uses a real-time temperature control system (RTCSmp) to ensure steady temperature levels for consistent results. It keeps the unit safe by limiting the energy supply at peak load.

Product Details

• 2 powerful generators
• Generators are enclosed in discrete housings
• RJ45 cable kit is included to connect generators and control unit
• Power switch regulates temperatures in a 1-12 range
• Installation frame is included
• Compact design coil carrier sheet
• 1 round coil for each zone

RTCSmp Control System

• Monitors the induction coils, ceramic glass, heat sink, and electronics
• Limits the energy supply at peak load
• Monitors when not cooking
• Diagnostic system with IR interface

Dimensions & Utilities

• Ceran glass: 28.35 in. W x 28.35 in. D x 0.24 in. H
• Mounting frame: 28.35 in. W x 28.35 in. D
• Generator housing: 23.62 in. W x 14.17 in. D x 2.58 in. H (x2)
• 44 A, 14,000 W
• 208 V/60 Hz/3 ph

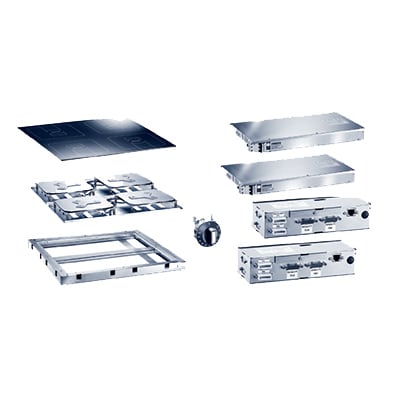

Quad Induction Range, built-in, (1) 28.4″ x 28.4″ ceran glass top, (4) cook zones with 3.5 kW coils, (2) induction generators, coils carrier sheet with coils sensors, cable kit, control unit RTCSmp control system, ETL, cETLus, CE, FCC (NET)
