Description

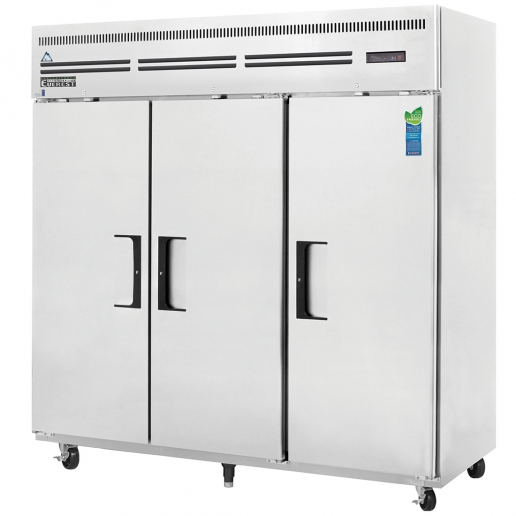

The ESF3 is a 74-3/4″ wide, three-section stainless steel insulated reach-in freezer from Everest Refrigeration with 3 self-closing and field reversible doors and shatterproof LED interior lighting. This freezer has a stainless steel interior and exterior, a digital control system, 9 shelves and 71 cubic feet of space.
The top mounted refrigeration system on this freezer uses environmentally friendly R-404A/R290 refrigerant. This unit has a cabinet with 2-1/2″ thick high density foamed-in-place polyurethane insulation. There is a forced-air cooling system in this freezer with multiple PSC/ECM fans to provide balanced airflow throughout the cabinet for a faster temperature drop.
The ESF3 operates on 115 Volts, 60 Hz, 1-phase and 12.36 Amps for (2) 1/2 HP compressors and includes a 9 foot power cord and 5-20P plug. There are 4 swivel casters on this freezer that are 5″ high and have brakes on front set. There is also 1 adjustable stainless steel clad ABS leg on this freezer.
Everest Refrigeration ESF3 Features
- 74-3/4″ wide
- Operates at 6,870 BTUH
- 3 self-closing and field reversible doors
- Top mounted condensing unit
- Stainless steel interior and exterior
- Shatterproof LED interior lighting
- Capacity: 71 cubic ft
- 9 shelves
- Digital control system
- Forced-air cooling system
- 2-1/2″ thick high density foamed-in-place polyurethane insulated cabinet
- Refrigerant: R-404A/R290
- Electrical specifications: 115 Volts, 60 Hz, 1-phase and 12.36 Amps for (2) 1/2 HP compressors
- Includes 5-20P plug and 9 foot cord
- 4 swivel casters: 5″ high with brakes on front set
- 1 adjustable stainless steel clad ABS leg
| Ship Weight | 661 lbs |
| Manufacturer | Everest Refrigeration |
| Model Number | ESF3 |
| Manufacturer Part # | ESF3 |
| Oversized Shipping | No |
| Hazardous Material | No |
| Base Material | Stainless Steel |
| Color | Silver |
| Dimensions (W x D x H) | 74-3/4″ x 31-5/8″ x 74-1/4″ |
| Capacity | 71 Cu. Ft. |
| Compressor Location | Top Mounted |
| Door Style | Swing |
| Door Type | Solid |
| Number of Sections | 3 |
| Number of Doors | 3 |
| Number of Shelves | 9 |
| Horsepower | 1/2 x 2 |
| Amps | 12.36 |
| Hz | 60 |
| Phase | 1 |
| Voltage | 115 |
| Temperature Range | -10 – 54F |
| NSF Approved | Yes |
