Description

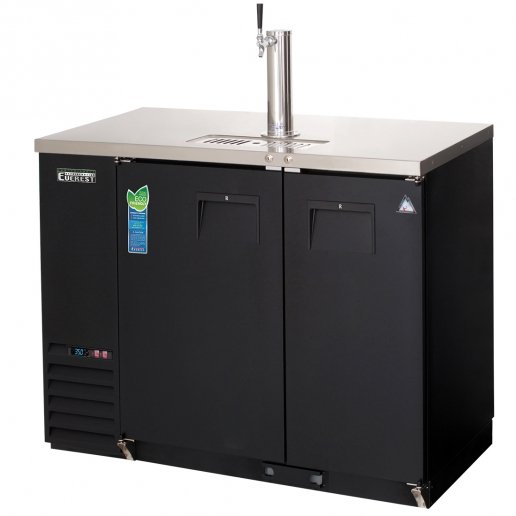

The EBDS2-BBG-24 is a 49″ wide, 24-1/2″ deep, two-section insulated back bar and direct draw keg refrigerator combo from Everest Refrigeration. This unit is equipped with a stainless steel countertop as well as a textured and laminated black vinyl exterior. There is 1 NSF approved 3″ diameter insulated stainless steel draft arm with an air distributor on this back bar and direct draw keg refrigerator combo. This back bar and direct draw keg refrigerator combo has the capacity for (1) 1/2 barrel and up to (175) 12 oz. cans or (126) 12 oz. bottles in 13 cubic feet of space.
There is 1 solid and 1 glass door with locks, 2 epoxy coated wire shelves and shielded LED lighting inside this back bar and direct draw keg refrigerator combo. There is also a galvanized steel interior wall and a stainless steel floor within this unit.
A forced-air cooling system in this back bar and direct draw keg refrigerator combo has an oversized condenser and ECM fans which provide balanced airflow throughout the cabinet for a faster temperature drop. The refrigeration system on this unit uses environmentally friendly R290 refrigerant and has 1-3/4″ thick, high density foamed-in-place polyurethane insulation.
The EBDS2-BBG-24 operates on 115 Volts, 60 Hz, 1-phase at 3.5 Amps for 1/4 HP and comes pre-wired and ready with NEMA 5-15P plug.
Everest Refrigeration EBDS2-BBG-24 Features
- 49″ wide
- 24-1/2″deep
- Stainless steel countertop
- Textured and laminated black vinyl exterior
- Galvanized steel interior wall and stainless steel floor
- 1 NSF approved 3″ diameter insulated stainless steel draft arm with air distributor
- 1 solid and 1 glass door with locks
- 2 epoxy coated wire shelves
- Multi-function digital controller with an easy to read LED display
- Forced-air cooling system
- Oversized condenser & ECM fans
- Shielded LED interior lighting
- Capacity: 13 cubic feet, (1) 1/2 barrel and (175) 12 oz. cans or (126) 12 oz. bottles
- 1-3/4″ thick, high density foamed-in-place polyurethane insulation
- Refrigerant: R290
- Electrical specifications: 115 Volts, 60 Hz, 1-phase and 3.5 Amps for 1/4 HP
- Pre-wired and ready with NEMA 5-15P plug
Everest Refrigeration EBDS2-BBG-24 Benefits
- NSF Listed
- NEMA 5-15P
- ETL-Sanitation
- ETL-Safety
Overall Dimensions
Length: 49″
Depth: 24-1/2″
Height: 37-1/4″
| Ship Weight | 263 lbs |
| Manufacturer | Everest Refrigeration |
| Model Number | EBDS2-BBG-24 |
| Manufacturer Part # | EBDS2-BBG-24 |
| Oversized Shipping | No |
| Hazardous Material | No |
| Base Material | Stainless Steel Countertop, Vinyl Exterior |
| Color | Black |
| Dimensions (W x D x H) | 49″ x 24-1/2″ x 37-1/4″ |
| Capacity | 13 Cu. Ft. |
| Keg Capacity | 1 Keg (1 x 1/2 Barrel) |
| Compressor Location | Side Mounted |
| Number of Sections | 2 |
| Number of Doors | 2 |
| Number of Shelves | 2 |
| 12 oz. Can Capacity | 175 |
| 12 oz. Bottle Capacity | 126 |
| Door Style | Swing |
| Door Type | Solid/Glass |
| Horsepower | 1/4 |
| Amps | 3.5 |
| Hz | 60 |
| Phase | 1 |
| Voltage | 115 |
| Temperature Range | 33 – 54F |
| NSF Approved | Yes |
