Description

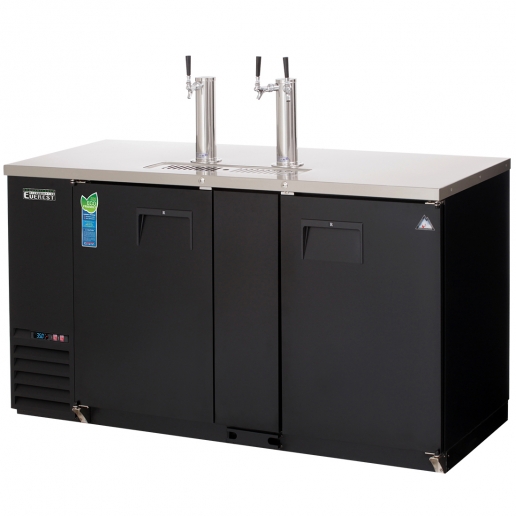

The EBD3-24 is a 68″ wide, 24-1/2″ deep, two-section insulated direct draw keg refrigerator from Everest Refrigeration. This unit is equipped with a stainless steel countertop as well as a textured and laminated black vinyl exterior. There are 2 NSF approved 3″ diameter insulated stainless steel draft arms with air distributors and the capacity for (3) 1/2 barrels in 20 cubic feet of space.
There are 2 doors with locks and shatterproof LED lighting inside this direct draw keg refrigerator. A galvanized steel interior wall and a stainless steel floor are equipped within this unit.
A forced-air cooling system in this direct draw keg refrigerator with an oversized condenser and ECM fans provide balanced airflow throughout the cabinet for a faster temperature drop. The refrigeration system on this unit uses environmentally friendly R290 refrigerant. This direct draw keg refrigerator has 1-3/4″ thick, high density foamed-in-place polyurethane insulation.
The EBD3-24 operates on 115 Volts, 60 Hz, 1-phase and 3.5 Amps for 1/4 HP and comes pre-wired and ready with NEMA 5-15P plug.
Everest Refrigeration EBD3-24 Features
- 68″ wide
- 24-1/2″ deep
- Stainless steel countertop
- Textured and laminated black vinyl exterior
- Galvanized steel interior wall and stainless steel floor
- 2 NSF approved 3″ diameter insulated stainless steel draft arms with air distributors
- 2 doors with locks
- Multi-function digital controller with an easy to read LED display
- Forced-air cooling system
- Oversized condenser & ECM fans
- Shatterproof LED interior lighting
- Capacity: 20 cubic feet, (3) 1/2 barrels
- 1-3/4″ thick, high density foamed-in-place polyurethane insulation
- Refrigerant: R290
- Electrical specifications: 115 Volts, 60 Hz, 1-phase and 3.5 Amps for 1/4 HP
- Pre-wired and ready with NEMA 5-15P plug
Everest Refrigeration EBD3-24 Benefits
- NSF Listed
- NEMA 5-15P
- ETL Safety
- ETL-Sanitation
Overall Dimensions
Length: 68″
Depth: 24-1/2″
Height: 37-1/4″
| Ship Weight | 297 lbs |
| Manufacturer | Everest Refrigeration |
| Model Number | EBD3-24 |
| Manufacturer Part # | EBD3-24 |
| Oversized Shipping | No |
| Hazardous Material | No |
| Base Material | Stainless Steel Countertop, Vinyl Exterior |
| Color | Black |
| Dimensions (W x D x H) | 68″ x 24-1/2″ x 37-1/4″ |
| Capacity | 20 Cu. Ft. |
| Keg Capacity | 3 Keg (3 x 1/2 Barrel) |
| Compressor Location | Side Mounted |
| Number of Sections | 2 |
| Number of Doors | 2 |
| Door Style | Swing |
| Door Type | Solid |
| Horsepower | 1/4 |
| Amps | 3.5 |
| Hz | 60 |
| Phase | 1 |
| Voltage | 115 |
| Temperature Range | 33 – 54F |
| NSF Approved | Yes |
