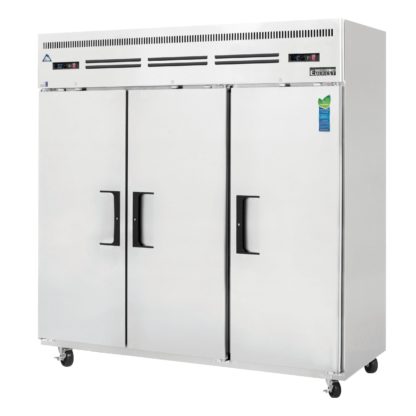

Everest ESRF3 Reach-In Refrigerator Freezer

Description

Refrigeration System
∙ Top mounted, self-contained and fully detachable condensing unit uses environmentally friendly R404A* refrigerant with zero (0) Ozone Depletion Potential (ODP) and EPA compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). R290 condensing units are
replaceable and require no on-site brazing. *Ask about alternative refrigerant.
∙ PSC evaporator fan motors for R404A models. Electronically commutated (ECM) fan motors for R290 models.
∙ Airflow guard ensures optimal circulation of cold air. R290 models include fulllength air duct system.
∙ Time-initiated and temperature-terminated auto defrost heater for R404A and R290 freezers. Air defrost for R290 refrigerators.
∙ Large capacity, corrosion-resistant condenser and evaporator coils.
∙ Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
∙ High performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to owner’s manual for full maintenance instructions.
∙ Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
∙ Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction
∙ Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace.
∙ Insulated interior wall between refrigerator and freezer compartments.
∙ Galvanized steel top, bottom and rear.
∙ 2.5″ thick high density polyurethane insulation.
∙ Four 5″ swivel casters with locks on front set.
Lighting
∙ Energy efficient silicone coated and shatter-proof LED lighting provides bright, high color illumination with
low heat output.
Doors
∙ Heavy duty stainless steel interior / exterior.
∙ 2.5″ thick high density polyurethane insulation.
∙ Frame heaters prevent exterior moisture build up.
∙ Self-closing with adjustable torsion system for a positive seal.
∙ Snap-in magnetic door gasket make cleaning and replacement an easy process.
∙ High strength, recessed door handles.
∙ Pre-installed door locks keep your items safe from theft.
∙ Field reversible.
Shelving
∙ Epoxy coated, steel wire shelves (see table for quantity).
∙ Height adjustable stainless steel clips. Temperature Control
∙ Multi-function digital controller with easy to read LED display.
∙ Factory preset temperature, 35°F for refrigerators and -4°F for freezers. Temperature setting range from 33° F to 54°F for refrigerators and -10°F to 54°F for freezers.
∙ R290 models include audible overheat protection alarm for compressor and condenser coil.
