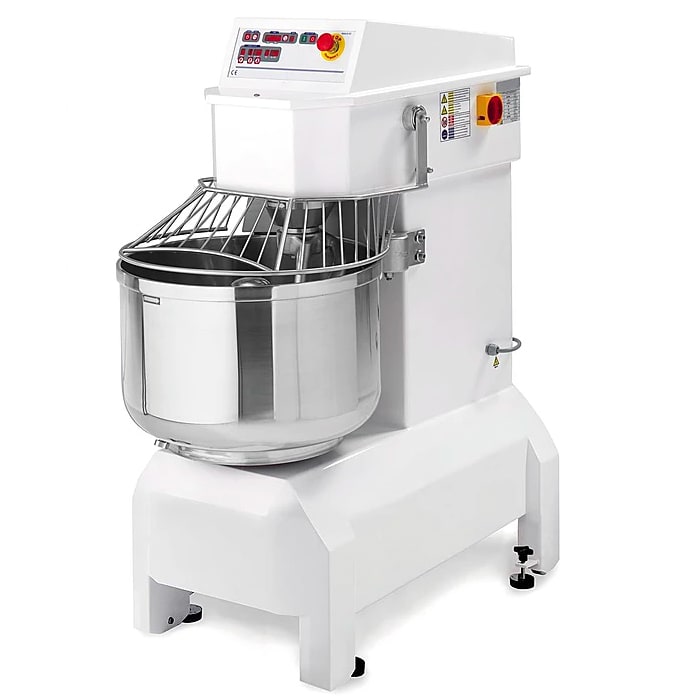

Doyon AEF035SP 70 qt Spiral Mixer – Floor Model, 208-240v/1ph

The Doyon AEF035SP spiral mixer is straightforward to use because the operator can preprogram as many as nine speed and time settings. Its timer is digitally displayed so the user knows when product has finished mixing. As much as 70 quarts of dough or batter can fit in the stainless steel bowl, which has a high center to eliminate the need for a dough feeder post. Equipped with a drain, the bowl is effortless to clean, and a stainless steel wire bowl guard enables the operator to see product as it mixes. If the guard is not locked in place, the unit will not start. This Doyon AEF035SP spiral mixer has a cast iron frame that is durable and resistant to scratches and stains.

Product Details

• 70-qt. bowl capacity
• High center bowl does not need a dough feeder post
• Drain in bowl streamlines cleanup
• Bowl guard provides visibility of batter or dough
• Digital controls are straightforward to use
• 9 programmable speed and time settings
• Efficient, 2-speed motor
• Digitally displayed timer
• Nonslip belt supports tough mixing applications
• Frame is made of cast iron for durability
• Enamel coating on the frame can be wiped down
• Bowl stays in place by the quick locking device
• Overheating is prevented by the motor overload protection

Dimensions & Utilities

• 22⁷/₁₆ in. W x 41¹/₈ in. D x 49³/₄ in. H
• 18 A, 1 HP and 4 HP motors
• 208-240 V/50-60 Hz/1 ph, NEMA L15-20P plug

Spiral Mixer, 120 lb. dough capacity, 2 speeds, programmable digital control, stationary stainless steel bowl, safety guard & mixing tools, cast iron frame with enamel coated steel finish, 4 HP & 1 HP, 208-240/60/1-ph, 18 amps
