Description

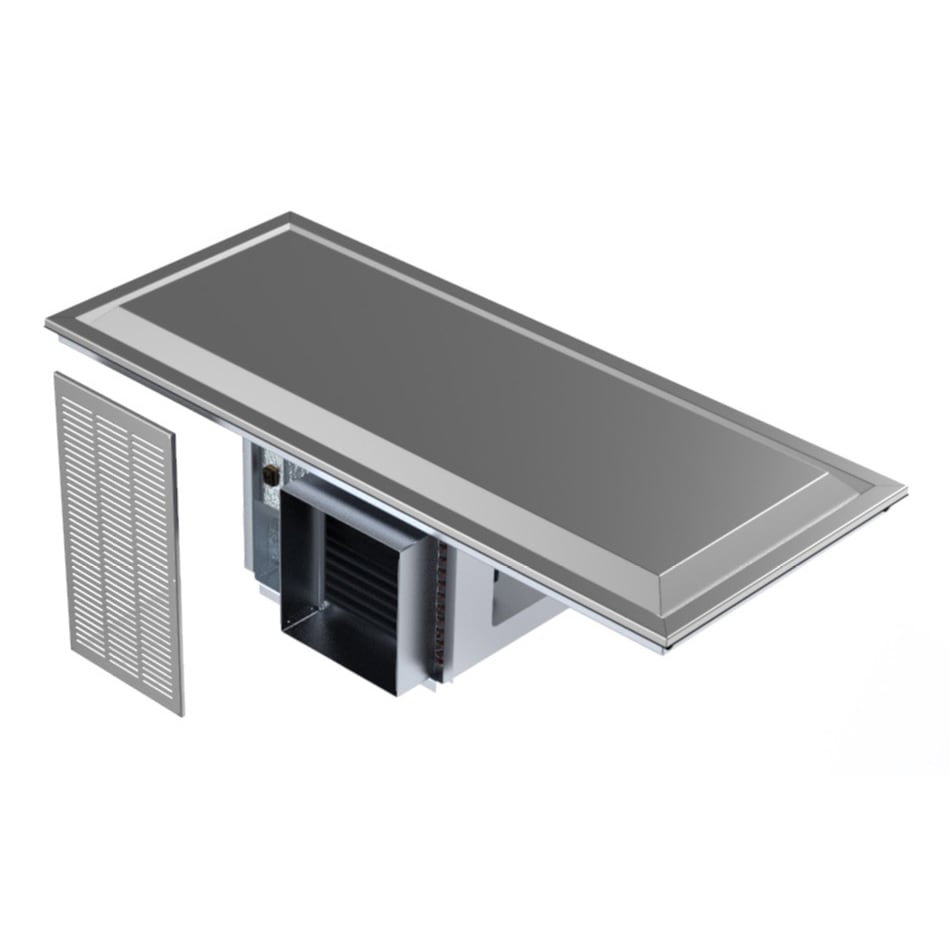

Delfield N8287P
To improve food presentation, the Delfield N8287P drop-in self-contained frost top’s surface is elevated by 1 inch, and its perimeter overhangs by 2.37 inches. The top’s stainless steel construction resists corrosion while withstanding long-term use, and it’s equipped with a full-perimeter drain trough to prevent liquid from pooling on the surface. Though it measures 87.25 inches wide by 25.87 inches deep by 15.75 inches high overall, its display area measures 79 inches wide by 18 inches deep. It can be installed into an 86.25-inch-wide by 25-inch-deep counter cutout.
To keep product cool, the Delfield N8287P drop-in frost top’s refrigeration lines are secured beneath the top. This unit has a self-contained condenser suspended beneath the unit on a heavy-gauge steel frame and uses R290 refrigerant. High-density polyurethane foam lines the unit to prevent temperature fluctuations when stored in warm ambient air. To streamline turning the unit on and off, a toggle switch is built into the condenser.
Product Details
- 1-piece, heavy-gauge stainless steel top
- Stainless steel exterior
- Fits an 86.25-in. x 25 in. counter cutout
- Elevated by 1 in.
- 2.37-in. overhang
- Self-contained condenser
- R290 refrigerant
- High-density polyurethane foam insulation
- On/off toggle switch built into condenser
- Full-perimeter drain trough and 0.5-in. drain
- Push-in perimeter gasket
- 1,803-BTU heat transfer capacity
Dimensions & Utilities
- Display area: 79 in. W x 18 in. D
- Overall: 87.25 in. W x 25.87 in. D x 15.75 in. H
- 4.8 A, 1/3 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
Drop-In Frost Top, stainless steel 1″ elevated top with drain trough & 2″ overhang, galvanized steel exterior housing, on/off toggle switch, self-contained refrigeration, R290 refrigerant, 1/3 hp, (86-1/4″ x 25″ cutout required), cUL, UL, NSF
