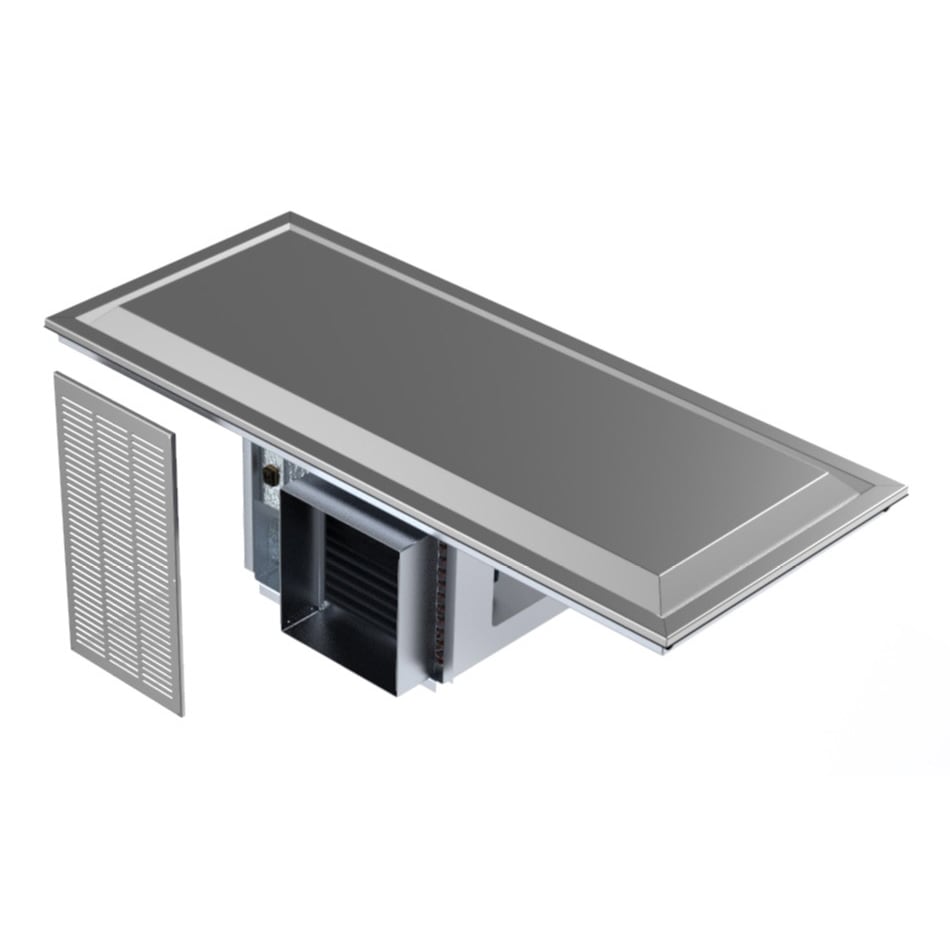

Delfield N8245P 45″ Elevated Frost Top w/ Built In Compressor, 115v

Designed as a drop-in unit, the Delfield N8245P elevated frost top installs into a 44.63-inch by 25-inch countertop cutout. Its 1-inch elevated top helps merchandise product to customers on a buffet line. It includes a drain trough that captures water and moisture, leading it out of the 0.50-inch drain to facilitate cleaning. Overall, this unit measures 45.63 inches wide by 26 inches deep by 15.75 inches high.

The Delfield N8245P drop-in frost top is self-contained and operates with environmentally friendly R290 hydrocarbon refrigerant. To retain energy and cold air, it contains polyurethane foam insulation. The top is made of stainless steel that resists rusting and corroding, and the exterior housing is galvanized steel that’s strong enough for repeated high-volume use. This unit is powered on and off using a switch.

Product Details

• 1-in. elevated top with drain trough
• 2-in. overhang
• Rust-resistant stainless steel top
• Galvanized steel exterior housing
• On/off toggle switch
• Self-contained condenser cools with R290 hydrocarbon refrigerant
• Insulated with polyurethane foam
• 0.50-in. drain
• Push-in perimeter gasket
• Fits in a 44.63-in. x 25-in. cutout
• 878-BTU heat transfer capacity

Dimensions & Utilities

• Display top: 37 in. x 18 in.
• Overall: 45.63 in. W x 26 in. D x 15.75 in. H
• 2.40 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Drop-In Frost Top, stainless steel 1″ elevated top with drain trough & 2″ overhang, galvanized steel exterior housing, on/off toggle switch, self-contained refrigeration, R290 refrigerant, 1/5 HP, (44-5/8″ x 25″ cutout required), cUL, UL, NSF
