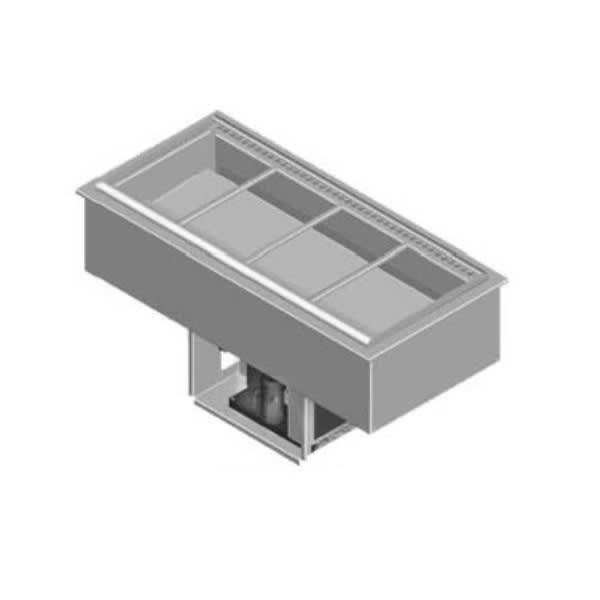

Delfield N8157-FAP 57″ Drop-In Refrigerator w/ (4) Pan Capacity, Forced Air Cooled, 115v

The Delfield N8157-FAP drop-in refrigerator operates with R290 refrigerant and is insulated with high-density polyurethane foam to reduce energy loss. It’s mechanically cooled using forced air and an easy-to-install, self-contained refrigeration system. It holds air at temperatures between 33 and 41 degrees Fahrenheit and is equipped with a defrost timer and low-pressure controls for user adjustment. This unit can be powered on or off at the flip of a switch.

For streamlined installation, the Delfield N8157-FAP forced-air cold pan comes with a stainless steel louver; adapter bars let it hold four 4-inch-deep food pans. It’s built with a 1-inch-drain to facilitate cleaning, and it includes black air deflectors to promote uniform cooling. This unit includes a rust- and corrosion-resistant stainless steel top and liner and a galvanized steel outer liner for strength.

Product Details

• Accommodates (4) 4-in.-deep pans
• Forced-air cooling
• Adapter bars
• Eco-friendly R290 refrigerant
• Holding temperature range: 33-41 degrees F
• Defrost timer
• Low-pressure controls
• On/off switch
• Self-contained refrigeration system
• Stainless steel liner and top with a galvanized steel outer liner
• 1-in. drain
• Insulated with polyurethane
• Black air deflectors guide air screen over pans
• Push-in flange gasket
• Cutout requirements: 55.75 in. x 25.50 in.
• 2,207-BTU heat-transfer capacity

Dimensions & Utilities

• 56.75 in. W x 26.67 in. D x 28.62 in. H
• 8.9 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

Drop-In Mechanically Cooled Pan, forced air, 4-pan size, accommodates 4″ deep pans, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 refrigerant, 1/2 hp, (55-3/4″ x 25-1/2″ cutout required), cUL, UL, NSF, 115v/60/1ph
