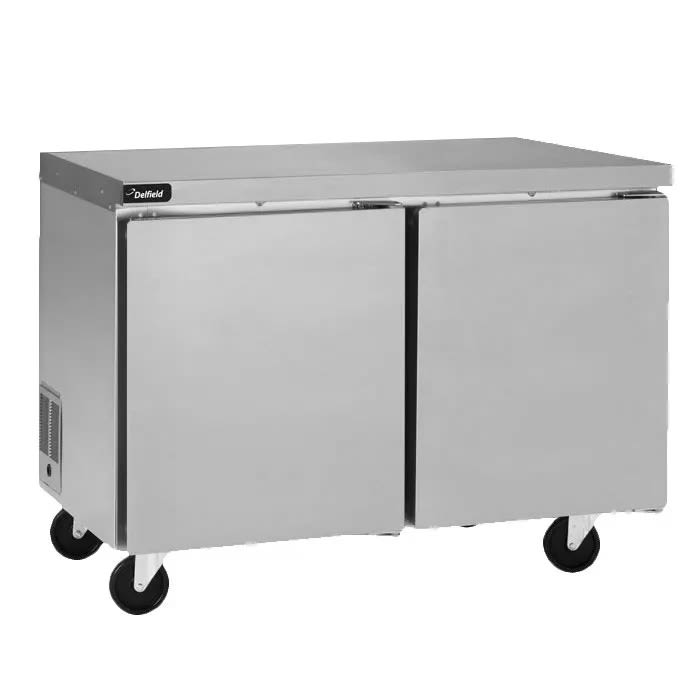

Delfield GUF60P-S 60″ W Undercounter Freezer w/ (2) Sections & (2) Doors, 115v

The Delfield GUF60P-S Coolscapes two-section undercounter freezer offers cold storage space under existing countertops without taking up valuable equipment and prep space. It has a large, 60-inch width with two sections, each with a corrosion-resistant, epoxy-coated shelf. The cabinet has two solid doors that can be reversed in the field to fit into different kitchen layouts. These doors have smart hinges that self-close and stay open, while handles are built into the doors.

Operators can adjust the temperature of this Delfield GUF60P-S undercounter freezer from -5 to 0 degrees Fahrenheit. Also improving recovery times for reduced compressor cycling and energy consumption, this temperature level is controllable on the electronic system. The refrigeration system is rear mounted, though the unit takes in and releases air from the front, so clearances aren’t needed from the top or sides.

Product Details

• 16.20-cu.-ft. interior space
• 2 sections
• 2 gray epoxy-coated shelves
• Stainless steel doors are reversible in the field
• 180-degree door openings
• Smart door hinges have self-closing and stay-open features
• Magnetic door gasket is removable to ease cleaning
• Replaceable door heater
• Built-in door handles
• High-density polyurethane is foamed in place to insulate the cabinet
• 2 of the (4) 5-in. casters are braking

Refrigeration System

• Temperature holding range: -5 to 0 degrees F
• Rear-mounted digital temperature display
• Electronic temperature control improves pull-down times and minimizes compressor cycling to save energy
• Adaptive defrost removes built-up ice on the evaporator
• Hot gas system eliminates evaporator condensate
• Uses GreenGenius R290 hydrocarbon refrigerant
• Thermostatic expansion valve is engineered for accurate refrigerant metering
• Rear mounted
• Front breathing to eliminate need for top and side airflow clearances

Durable Construction

• Stainless steel exterior worktop and front panel
• Exterior side panels are aluminum
• Galvanized exterior back and bottom panels
• Interior sides are gray coated
• Anodized aluminum interior bottom

Dimensions & Utilities

• Interior: 55.90 in. W x 19.90 in. D x 22.20 in. H
• Overall: 60 in. W x 31.59 in. D x 36 in. H
• 6.40 A, 4.02 kW, ¹/₅ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Coolscapes Undercounter/Worktable Freezer, two-section, 60″ W, 16.2 cubic feet, (2) stainless steel doors, (2) gray epoxy coated shelves, stainless steel top and front, aluminum sides, galvanized back and bottom, gray coated aluminum interior sides & anodized aluminum bottom, 5″ casters (2 locking, 2 non-locking), rear-mounted refrigeration system, GreenGenius R290 Hydrocarbon refrigerant, 115v/60/1, 6.4 amps, 8′ cord, NEMA 5-15P, 1/3 HP, UL, cUL, NSF, ENERGY STAR

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
