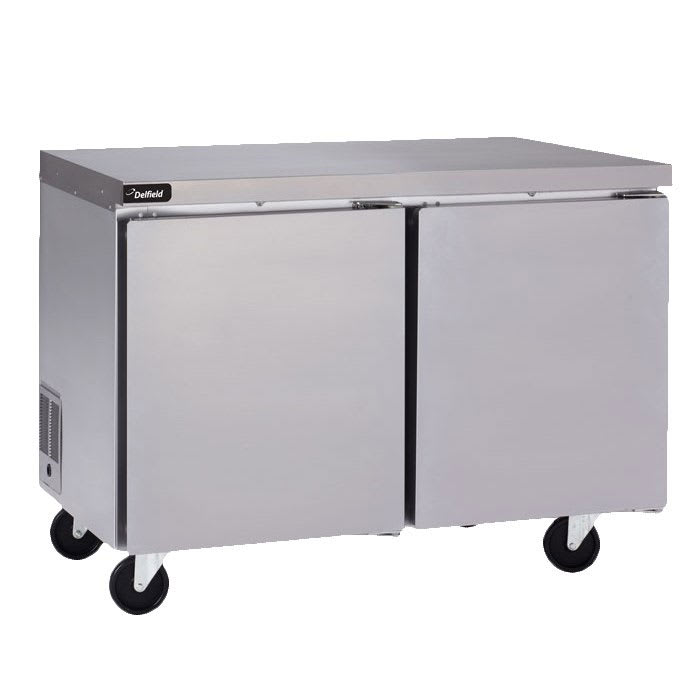

Delfield GUF48P-S 48″ W Undercounter Freezer w/ (2) Sections & (2) Doors, 115v

With a 48-inch width, the Delfield GUF48P-S Coolscapes undercounter freezer has two sections for cold food storage, each of which has an epoxy-coated shelf and is accessible behind a solid stainless steel door. These doors are field reversible and can be opened to a 180-degree angle. To help prevent cold air from escaping, the doors have comfortable integrated handles and magnetic gaskets. Also designed to reduce heat transfer, polyurethane insulation is foamed in place in the cabinet.

Enabling operators to set the temperature at a level between -5 and 0 degrees Fahrenheit, this Delfield GUF48P-S two-section undercounter freezer has an electronic control system. With this system, the freezer has efficient pull-down times that reduce compressor cycling, which increases the compressor’s lifespan and conserves energy. The refrigeration system is rear mounted, and because it breathes from the front, it doesn’t need side or top clearances.

Product Details

• 12.50-cu.-ft. interior space
• 2 sections
• 2 gray epoxy-coated shelves
• Stainless steel doors are field reversible
• 180-degree door openings
• Smart door hinges with self-closing and stay-open features
• Magnetic door gasket can be removed for cleaning
• Replaceable door heater
• Built-in door handles
• High-density polyurethane is foamed in place for insulation
• (4) 5-in. casters; 2 braking

Refrigeration System

• Temperature holding range: -5 to 0 degrees F
• Rear-mounted digital temperature display
• Electronic temperature control improves pull-down times, minimizing compressor cycling to save energy
• Adaptive defrost removes evaporator ice buildup
• Hot gas system eliminates evaporator condensate
• Uses GreenGenius R290 hydrocarbon refrigerant
• Thermostatic expansion valve accurately meters refrigerant
• Mounted on the rear
• Front breathing to eliminate top and side airflow clearance needs

Durable Construction

• Stainless steel exterior worktop and front panel
• Aluminum exterior side panels
• Galvanized exterior back and bottom panels
• Gray-coated interior sides
• Anodized aluminum interior bottom

Dimensions & Utilities

• Interior: 43.90 in. W x 19.90 in. D x 22.20 in. H
• Overall: 48 in. W x 31.59 in. D x 36 in. H
• 6.40 A, 3.78 kW, ¹/₅ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Coolscapes Undercounter/Worktable Freezer, two-section, 48″ W, 12.5 cubic feet, (2) stainless steel doors, (2) gray epoxy coated shelves, stainless steel top and front, aluminum sides, galvanized back and bottom, gray coated aluminum interior sides & anodized aluminum bottom, 5″ casters (2 locking, 2 non-locking), rear-mounted refrigeration system, GreenGenius R290 Hydrocarbon refrigerant, 115v/60/1, 6.4 amps, 8′ cord, NEMA 5-15P, 1/3 HP, UL, cUL, NSF

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
