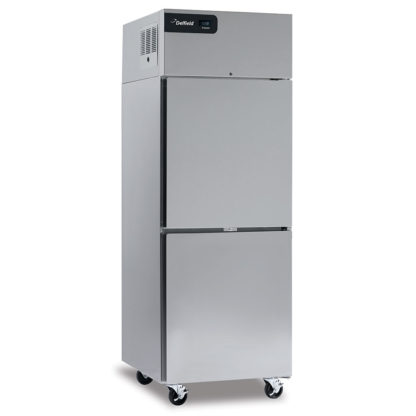

Delfield GBF1P-SH 27″ One Section Reach-In Freezer, (2) Solid Doors, 115v

The Delfield GBF1P-SH Coolscapes single-section freezer uses the GreenGenius refrigeration system to keep temperatures between -5 and 0 degrees Fahrenheit with R290 refrigerant. A thermostatic expansion valve is used to control the amount of refrigerant supplied to the evaporator. The hot gas system keeps condensation off the evaporator, while an adaptive defrost system keeps ice off the coil. Since the system is top mounted, it does not take up storage space in the unit.

There are two half-height doors on the Delfield GBF1P-SH Coolscapes single-section freezer. Each door opens 180 degrees and remains open past 90 degrees for loading and unloading. To keep cold air inside, the door also closes automatically at 90 degrees. A readout of the interior temperature is provided on the exterior display, and if the temperature is lower or higher than the set range, the operator is notified by visual alarms on the display.

Product Details

• Full-size sheet pans fit inside the unit
• 3 epoxy-coated shelves resist corrosion
• Shelf bridge creates additional storage space
• Digital display offers an exterior readout of the internal temperature
• Operator is alerted with visual alarms if the temperature drops out of its set range
• Interior has an aluminum construction to provide durability
• Interior floor simplifies cleanup since it is made of stainless steel
• Front and sides are made of stainless steel for corrosion and minor damage resistant
• Mobility is possible with (4) 5-in. locking casters
• Removable side louver is easy to clean

GreenGenius Refrigeration System

• GreenGenius refrigeration system keeps utility costs low and saves energy
• Temperature holding range: -5 to 0 degrees F
• R290 hydrocarbon refrigerant
• Refrigerant amount sent to the evaporator is controlled by the thermostatic expansion valve
• Hot gas system keeps condensation off the evaporator
• Electronic temperature control quickens pull-down times to reduce compressor cycling, ensuring a long compressor life and low energy use
• Adaptive defrost system prevents ice buildup on the coil
• Saves interior space by mounting on the top

Two Half-Height Solid Doors

• Opens 180 degrees for quick, easy access to product
• Smart hinges automatically close before 90 degrees to keep cold air in
• Smart hinges stay open past 90 degrees for loading
• Integrated handles make it easy to access product
• Cold air is kept inside with the help of a raised ABS interior door liner
• Opening perimeter is heated to make it easy to open
• Gasket can be removed without tools
• Lock to secure products
• Field reversible for different footprints

Dimensions & Utilities

• 27.40 in. W x 32.51 in. D x 79.48 in. H
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug
• 7.2 A, ¹/₂ HP

Coolscapes Reach-In Freezer, one-section, 27.4″ W, 21.0 cubic feet, self-contained refrigeration, (2) half-height solid doors, LED interior lighting, digital temperature display/controls, (3) epoxy coated wire shelves, pilaster with shelf clips, stainless steel front & sides, aluminum back & interior, top mount refrigeration system, GreenGenius R290 Hydrocarbon refrigerant, 5″ casters, 115v/60/1-ph, 7.2 amps, 1/2 HP, NEMA 5-15P, UL, NSF, ENERGY STAR

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
