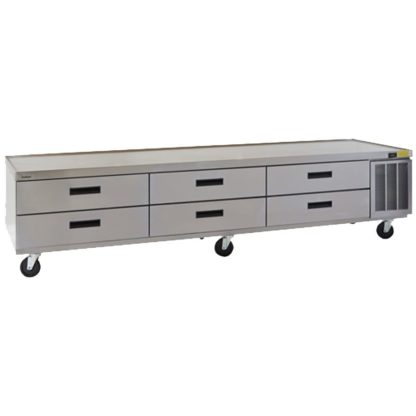

Delfield F29110CP 110 1/4″ Chef Base w/ (6) Drawers – 115v

The Delfield F29110CP refrigerated chef base has a stainless steel, six-drawer system that holds (12) 12-inch by 20-inch by 4-inch-deep hotel pans. To reduce maintenance, the tracks provide smooth drawer opening and closing without grease. These tracks also hug the gaskets so the drawers stay closed on uneven floors. The gaskets line the openings to create an airtight seal and snap out of the base for cleaning.

Constructed of stainless steel, the top of the Delfield F29110CP chef base is corrosion and scratch resistant. The marine edge surrounds the top, keeping excess water off the floor, while the welded corners keep bacteria out of the top. Six-inch casters enable the unit to be moved, facilitating cleaning and component service. The base comes with a wall-mounting bracket, so it can be secured to a solid surface for stability.

Product Details

• Durable, corrosion-resistant, stainless steel top is heavy duty
• Marine edge around the top contains messes
• Corners are fully welded for a smooth finish that expedites cleaning
• 6-in. casters enable unit mobility
• Wall-mount bracket can be attached to secure the unit to solid surfaces
• 2,893-BTU heat transfer capacity

Refrigerated Drawer Base

• 6 drawers accommodate (12) 12-in. x 20-in. x 4-in. hotel pans (not included)
• System is made of stainless steel to withstand heavy use
• Delrin track rollers glide without grease
• Tracks hold onto the gaskets to keep the drawers closed on uneven floors
• Snap-in gaskets are removable, simplifying cleaning
• Recessed handles are comfortable to grip

Refrigeration System

• Temperature holding range: 36-40 degrees F
• R290 hydrocarbon refrigerant maintains cold temperatures
• Polyurethane foam insulation retains cold air
• Mullion blower coils are mounted between each drawer section
• Coils provide even airflow and temperature control
• Machine compartment holds the condenser, condensate evaporator, and electronic control

Dimensions & Utilities

• Top: 108.5 in. W x 29.19 in. D
• Overall: 110.25 in. W x 30.94 in. D x 24 in. H
• 6.3 A, 1.78 kW, ¹/₃ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Refrigerated Low-Profile Equipment Stand, 110-1/4″W x 31-47/50″D x 24″H, three-section, (6) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4″ casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/3 hp, cUL, UL, NSF, 115v/60/1ph

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
