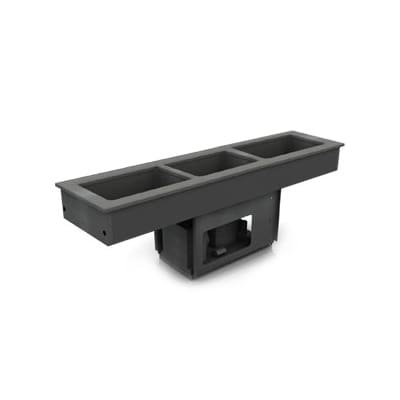

Delfield 8169-EFNP 69″ Drop-In Refrigerator w/ (3) Pan Capacity – Cold Wall Cooled, 115v

To reduce temperature fluctuations, the Delfield 8169-EFNP LiquiTec drop-in refrigerator is built with high-density polyurethane foam insulation in its sides and bottom. Its temperature holding range is 33 to 41 degrees Fahrenheit; operators can adjust these levels using precise electronic controls. To produce these temperatures, the unit uses a LiquiTec self-contained eutectic fluid refrigerated system and R290 refrigerant.

The Delfield 8169-EFNP drop-in cold food unit’s inner liner, top, and louver are constructed of stainless steel to provide durability in high-volume settings. This heavy-duty metal resists corrosion and is simple to clean. Its ¹/₂-inch drains are also made of stainless steel, and it features galvanized steel exterior housing for added durability. Overall, it measures 69.22 inches wide by 18 inches deep by 23.25 inches high.

Product Details

• 3 individual 12-in. x 20-in. stainless steel wells
• Accommodates 3 pans with 4-in. or 6-in. depths
• For drop-in installation flush with countertop
• Requires 68.50-in. x 17.25-in. counter cutout
• High-density polyurethane insulation in bottom and sides
• Galvanized steel exterior housing
• Top, inner liner, and louver constructed of rugged stainless steel
• LiquiTec self-contained eutectic fluid refrigeration system
• Electronic temperature control
• Temperature holding range: 33-41 degrees F
• ¹/₂-in. stainless steel drains with manifold
• R290 refrigerant

Dimensions & Utilities

• 69.22 in. W x 18 in. D x 23.25 in. H
• 3.7 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

LiquiTec Slim Line Drop-In Cool Food Unit, 3-pan size, 4″ or 6″ deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R404A refrigerant, 1/4 hp, (68-1/2″ x 17-1/4″ cutout required), cUL, UL, NSF
