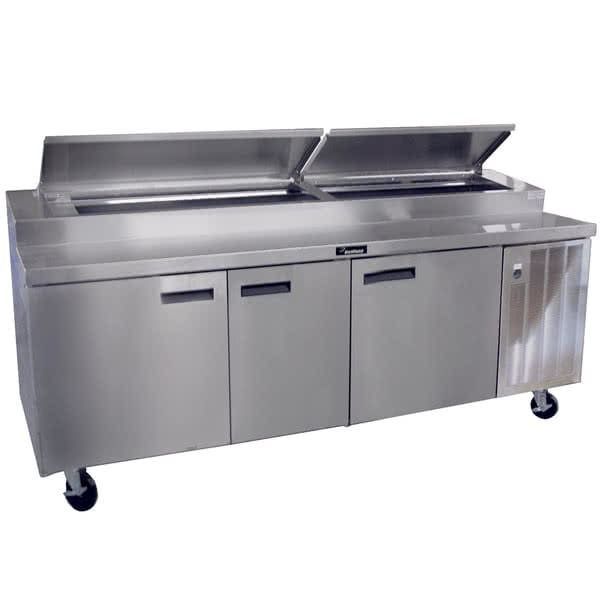

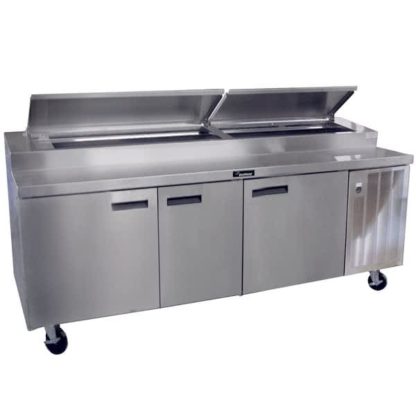

Delfield 18691PTBMP 91″ Pizza Prep Table w/ Refrigerated Base, 115v

The Delfield 18691PTBMP pizza prep table has top rails that hold 11 third-size pans for storing toppings. These rails are mechanically cooled to maintain a temperature range of 33 to 41 degrees Fahrenheit. Hinged stainless steel covers are included to prevent the loss of cold air and to protect food in the pans from contamination. Its exterior is made of stainless steel, enabling the unit to withstand heavy use, and its interior has a stainless steel bottom and back with sides and door frames made of tough ABS plastic. Insulation is provided by high-density polyurethane foam, which is better for the environment than other methods.

The Delfield 18691PTBMP pizza prep table has two door compartments in its base for additional refrigerated storage. Each compartment has a shelf made of wire with a corrosion-resistant epoxy coating. Temperatures inside the base are kept between 36 and 40 degrees Fahrenheit using eco-friendly R290 refrigerant. The side-mounted condenser can be accessed through the front louver and supports safe operation when backed against large equipment or walls. Both doors are equipped with dart-style gaskets that can be removed for cleaning, maintenance, or replacement.

Product Details

• 11 third-size pans fit into the top rails (sold separately)
• Hinged stainless steel covers help prevent cold-air loss and contamination
• Stainless steel exterior is corrosion resistant and durable for use in busy establishments
• Interior sides and door frames are made of durable ABS plastic
• Stainless steel interior bottom and back aid in the cleanup process
• High-density polyurethane insulation is foamed in place to keep cold air around the product
• Dart-style gaskets on the 3 doors enable the doors to be replaced
• 1 corrosion-resistant, epoxy-coated wire shelf per door compartment
• Moves on 5-in. casters
• Condenser is mounted on the side so that the unit can be installed with its back to walls without affecting air circulation
• R290 hydrocarbon refrigerant is more energy efficient than traditional refrigerants
• Rail and base compartments have independent power switches

Rail Refrigeration System

• Temperature range: 33-41 degrees F
• Electronic controls indicate set-point temperature
• ¹/₅ HP

Base Refrigeration System

• Temperature range: 36-40 degrees F
• Evenly cooled by mullion-style blower coils with expansion valves between each door section
• Electronic controls display the air temperature
• (2) ¹/₅-HP fan motors

Dimensions & Utilities

• 91 in. W x 31¹/₂ in. D x 42 in. H
• 6.5 A
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Refrigerated Pizza Table, three-section, 91″ W, 22.82 cubic feet, (11) 1/3 pan capacity, (3) shelves, (2) 27″ doors & (1) 19″ door, 18 gauge stainless steel top, refrigerated pan rail, stainless steel ends, 6″ casters, side-mounted refrigeration system, R290 Hydrocarbon refrigerant, (2) 1/5 HP, cUL, UL, NSF

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
