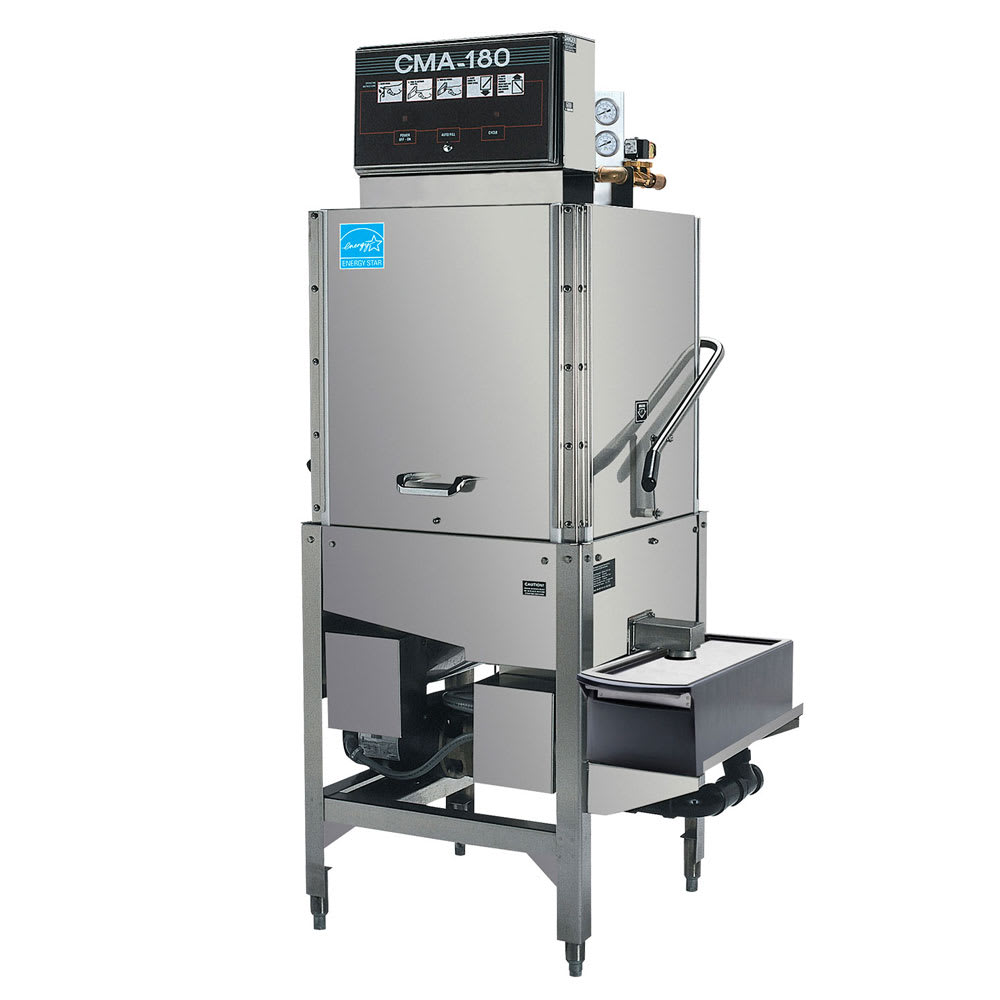

CMA Dishmachines CMA-180SB High Temp Door Type Dishwasher w/ Built-In Booster, 208v/3ph

The CMA 180SB door-type dishwasher is made of stainless steel, which prevents scuffs and dents. A built-in booster heater ensures rinse water reaches 180 degrees Fahrenheit. With its straight-thru design, the unit can be placed virtually anywhere along a wall. The top-mounted, watertight control box has several controls, including a rack counter, temperature gauges, and an extended wash/delimer switch. The upper and lower stainless steel spray arms are interchangeable and removable for cleaning. The CMA 180SB upright high-temp dishwasher has a 58-second cycle and can wash 60 racks per hour using only 0.82 gallons of water per rack.

Product Details

• Integral booster heater guarantees rinse water reaches 180 degrees F
• Stainless steel construction resists scratches and dents
• Straight-thru design
• Consumes only 0.82 gal. of water per rack
• Soil removal system filters water and collects debris into an external removable tray
• Upper and lower stainless steel spray arms are removable for cleaning and are interchangeable
• Watertight control box is top mounted and has an extended wash/delimer switch, rack counter, and temperature gauges
• Programmed start and stop enables a safe, effortless operation
• Automatic tank fill
• Single point electrical connection
• Can wash 60 racks per hour
• Total cycle takes 58 sec. with 42-sec. wash time, 12-sec. rinse time, and 4-sec. dwell time
• Fits 1 standard 19.75 in. L x 19.75 in. W dishrack
• Pump capacity: 52 gal. per min.
• 8-gal. wash tank capacity
• Required incoming water temperature for booster heater: 120-140 degrees F
• Requires 2-in. drain connection and 0.75-in. water inlet
• Required incoming water pressure: 15-25 PSI
• 5-in. minimum wall clearance
• 17.5-in. max clearance for dishes
• 20.5-in. door opening
• 208V/60 Hz/3 ph
• 49 A, 1 HP wash pump motor, 12 kW booster heater
• Overall dimensions: 25.5 in. L x 25 in. W x 73.5 in. H, 79 in. H with door open

Dishwasher, door type, 25-1/2″W x 25″D x 60″H, straight-thru design, high temperature sanitizing with built-in booster heater, (60) racks/hour, top mounted control box, external Poly Pro scrap accumulator, electric tank heat, auto start/stop, auto fill, stainless steel construction, includes (1) open & (1) peg rack, 1 HP wash pump, ENERGY STAR, NSF, UL, cULus, 208v/60/3ph

(Bare wire unit)
