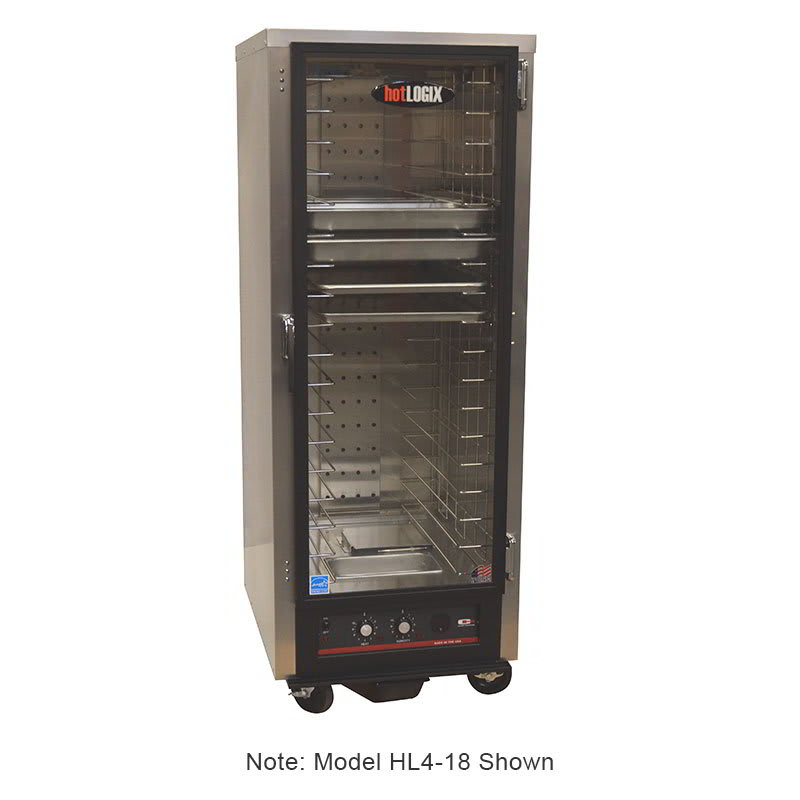

Carter-Hoffmann HL4-8 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

Because of its half-height design, the Carter-Hoffmann HL4-8 hotLOGIX4 humidified heated holding cabinet can support 16 full-size steam table pans or eight full-size sheet pans. Fixed wire slides hold the pans in place with a 3-inch spacing between them. Foamed in the cabinet top and sides, insulation keeps heat and humidity inside the cabinet and around the stored product. The door is field reversible, and for viewing, it has a single-pane glass window.

This Carter-Hoffmann HL4-8 half-height holding cabinet can be used to proof baked goods or hold cooked food at warm temperatures. It has a heat and humidity system that consistently moves air in the cabinet for even temperatures and provides quick preheating and recovery times. Whether the unit is holding or proofing, it sends full power to all the heating and humidity elements. The humidity element is under the 2.5-quart water reservoir in the bottom of the cabinet, and heat and humidity are controlled separately with dial controls. Its internal temperature runs between 85 and 190 degrees Fahrenheit, while the humidity can be set on a level from 90 to 95 percent.

Product Details

• Part of the hotLOGIX4 series
• Half-height design
• Accommodates (16) 12-in. x 20-in. steam pans or (8) 18-in. x 26-in. sheet pans
• Fixed universal wire slides have 3 in. of spacing between them
• High-density, 1-in.-thick insulation in the top and sides holds heat inside the cabinet
• Door can be reversed in the field to fit into different layouts
• Tempered single-pane glass in the door provides cabinet visibility
• Magnetic latch secures the door to the frame during transport
• Full-perimeter door gasket
• Cabinet base has a drip trough that catches condensation, moving it into the pan below
• (4) 5-in. casters with non-marking rubber tread
• 2 of the casters have brakes

Heat & Humidity System

• Can hold and heat or proof stored items
• Heat duct and blower evenly and efficiently move heat throughout the cabinet, providing quick preheat and recovery times
• Gives full power to both the heating and humidity elements whether it is holding or proofing
• 2.5-qt. stainless steel water reservoir in the bottom of the cabinet
• Element below the reservoir provides heat that creates humidity
• Separate heat and humidity controls with analog control dials
• Dials are recessed to prevent damage
• Temperature holding range: 85-190 degrees F
• Humidity range: 90-95 percent

Dimensions & Utilities

• Interior: 24¹/₄ in. H
• Overall: 26¹/₂ in. W x 31¹/₂ in. D x 40⁵/₈ in. H
• 17.5 A, 2100 W
• 120 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-20P plug

hotLOGIX Humidified Holding Cabinet/Heater proofer-HL4 Series, one compartment, 1/2-height, insulated, (16) 12″ x 20″ or (8) 18″ x 26″ pan capacity, 3″ fixed wire universal slides, (1) single pane tempered glass door, mechanical controls, bottom-mount forced air heat with water reservoir, aluminum construction, (4) 5″ swivel casters (2 with brakes), ETL, ETL-Sanitation,
