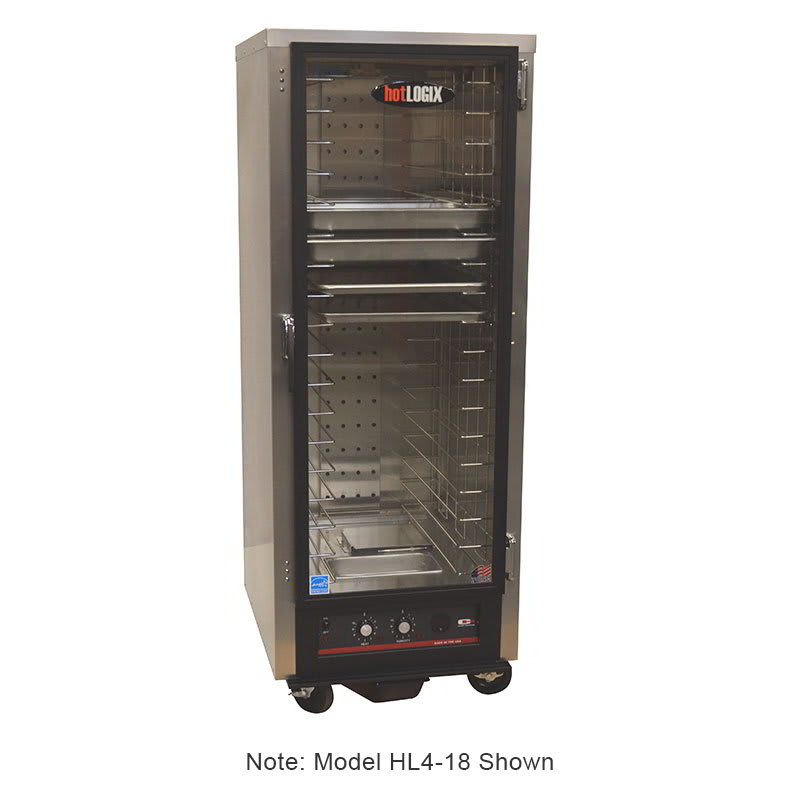

Carter-Hoffmann HL4-14 3/4 Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v

The Carter-Hoffmann HL4-14 hotLOGIX4 insulated heated cabinet can be used as a holding cabinet with just heat or as a proofing cabinet with humidity. Whether the unit is in holding or proofing mode, it provides full power to the heat and humidity elements, which are controlled separately with analog dials. Its temperature can be set between 85 and 190 degrees Fahrenheit, and humidity is adjustable between 90 and 95 percent. To generate humidity, the water in the 2.5-quart-capacity reservoir is heated by an element underneath it. The heat duct and blower evenly distribute heat and humidity throughout the cabinet, providing quick preheat and recovery times.

Because of its three-quarter height, this Carter-Hoffmann HL4-14 humidified holding cabinet accommodates 14 full-size sheet pans or 28 full-size steam table pans, which are held in place on fixed wire slides with 3 inches of spacing between them. Insulation traps heat inside the unit, while the door can be reversed in the field to fit into different layouts. The door has a glass window so operators can monitor cooking cycles.

Product Details

• Part of the hotLOGIX4 series
• Three-quarter height
• Holds (14) 18-in. x 26-in. sheet pans or (28) 12-in. x 20-in. steam table pans
• Universal wire slides have fixed 3-in. spacing
• 1-in.-thick, high-density insulation at the sides and top retain heat
• Field-reversible door has single-pane, tempered glass so users can see food
• Magnetic door latch secures it for transport
• Full-perimeter door gasket seals it to the frame to prevent heat from leaking out
• Drip trough in the base catches condensation and moves it into the plastic pan below
• (4) 5-in. casters with rubber tread
• 2 casters have brakes

Heat & Humidity System

• Can be used for holding and proofing
• Heat duct provides even, efficient heating inside the cabinet to maintain consistent results
• Designed for quick heat and humidity recovery
• Provides full power to heat and humidity elements whether it is in holding or proofing mode
• Bottom-mounted stainless steel water reservoir with a 2.5-qt. capacity
• Element below the reservoir heats the water when humidity is needed
• Separate controls for heat and humidity with recessed, analog control dials
• Temperature holding range: 85-190 degrees F
• Humidity range: 90-95 percent

Dimensions & Utilities

• Interior: 42¹/₄ in. H
• Overall: 26¹/₂ in. W x 31¹/₂ in. D x 58⁵/₈ in. H
• 17.5 A, 2100 W
• 120 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-20P plug

hotLOGIX Humidified Holding Cabinet/Heater Proofer-HL4 Series, one compartment, 3/4 height, insulated, (28) 12″ x 20″ or (14) 18″ x 26″ pan capacity, 3″ fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heat with water reservoir, mechanical controls, aluminum construction, (4) 5″ swivel casters (2 with brakes), ETL, ETL-Sanitation,
