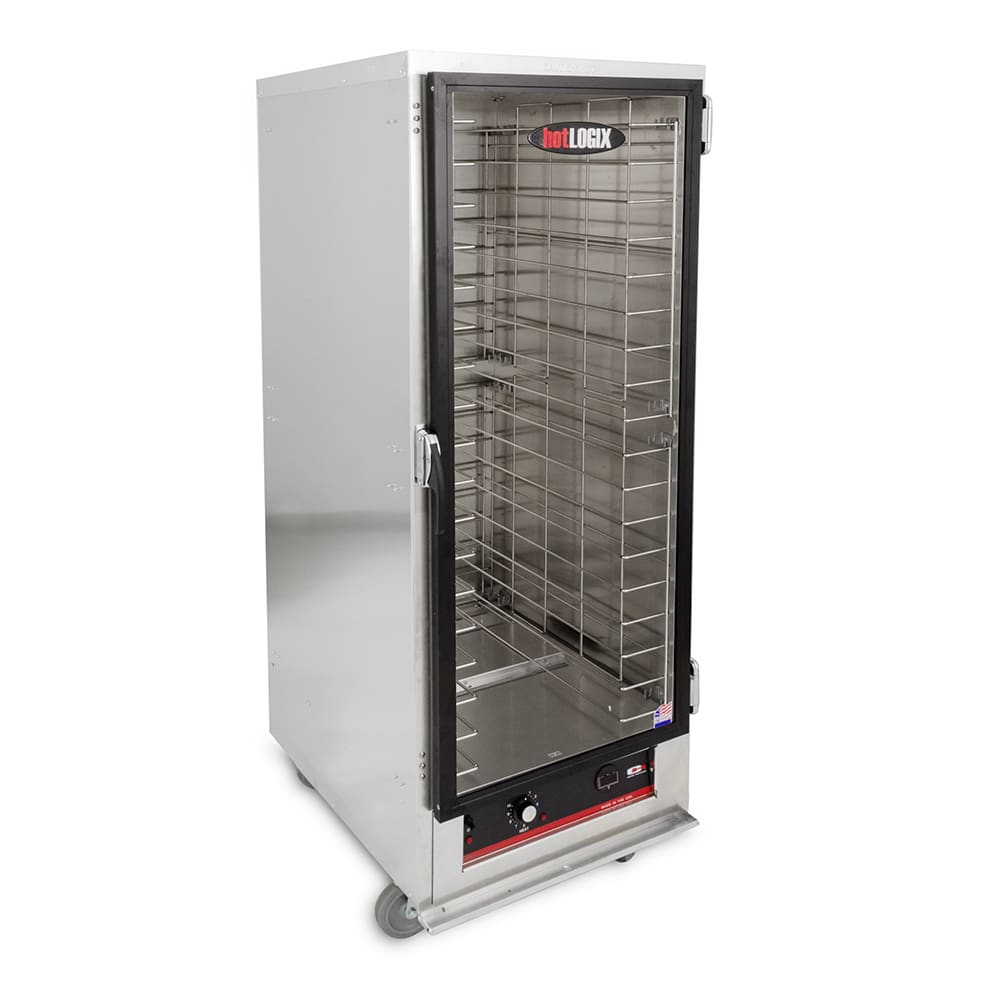

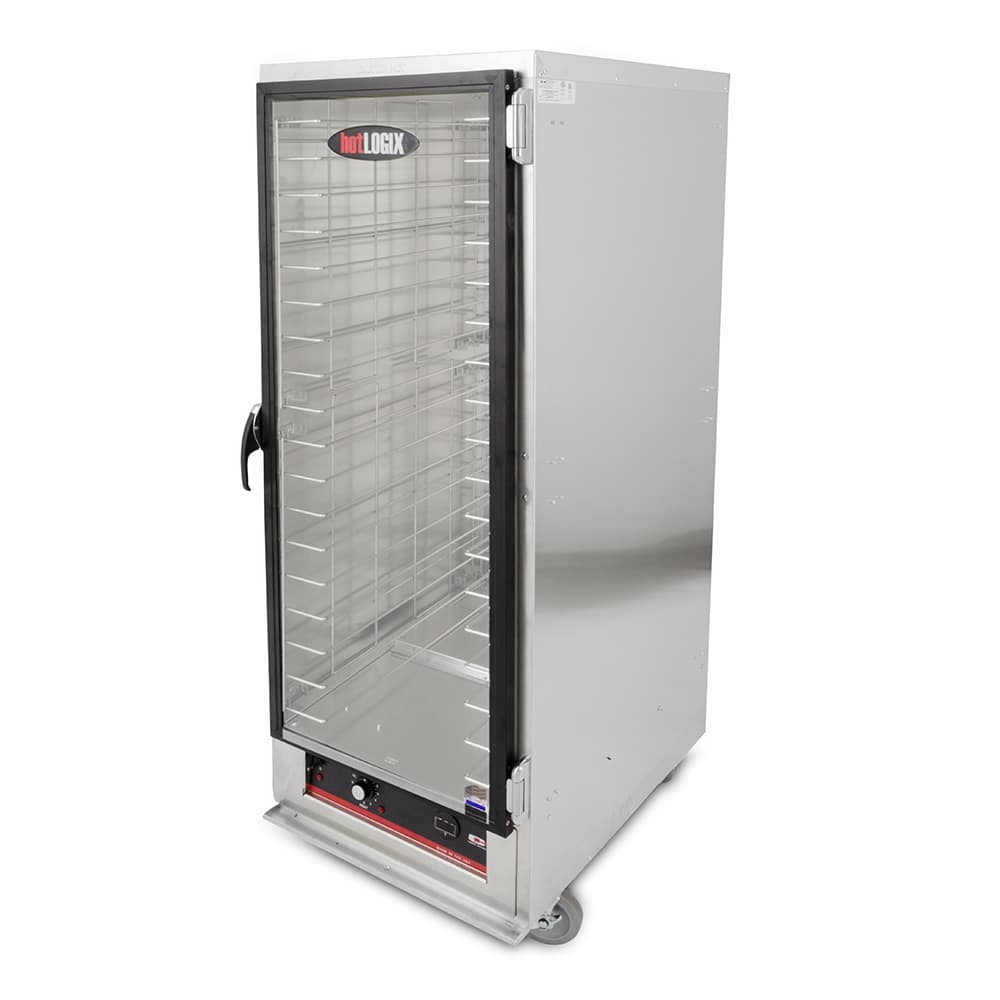

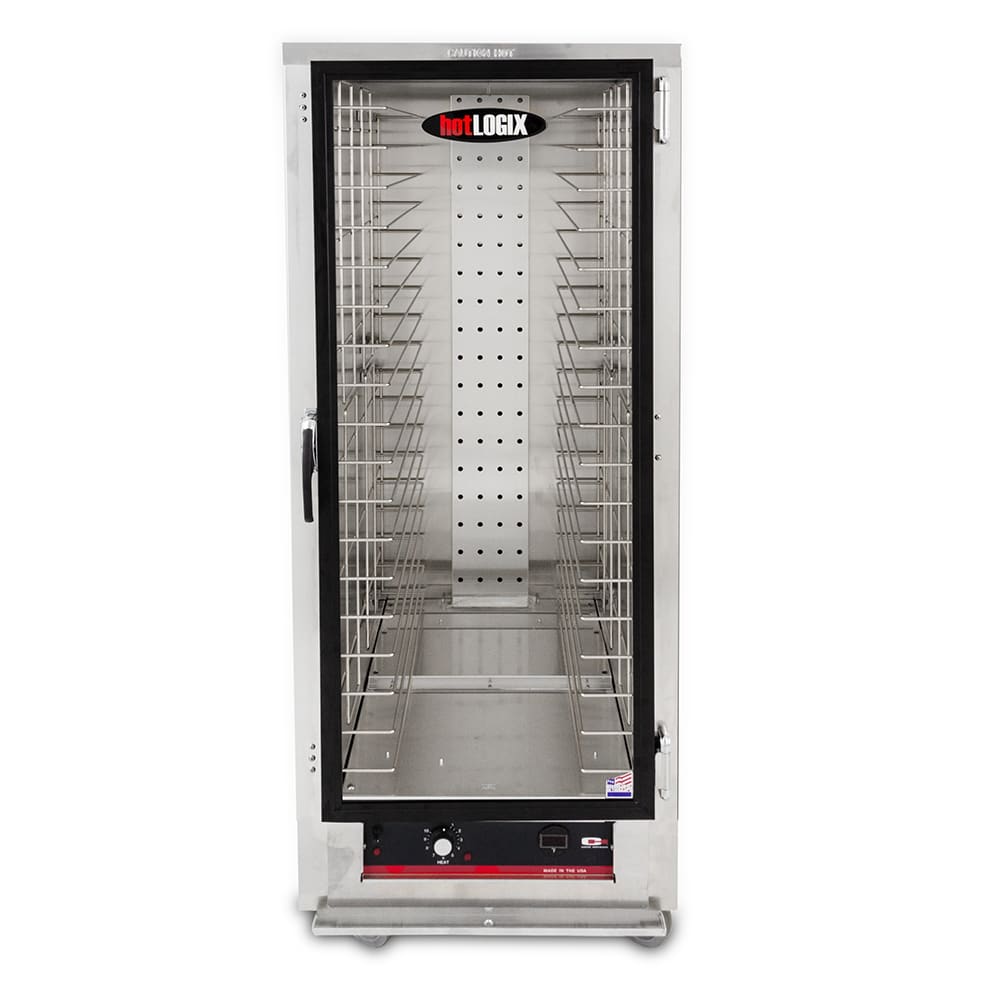

Carter-Hoffmann HL3-18 Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

The Carter-Hoffmann HL3-18 heated holding cabinet is equipped with the capacity for (36) 12-inch by 2-inch food pans or (18) 18-inch by 26-inch sheet pans. Universal wire slides hold these pans in place at a fixed spacing of 3 inches. It takes 30 minutes to preheat the cabinet to 160 degrees Fahrenheit and offers a full temperature range of 85 to 190 degrees Fahrenheit. A digital thermometer uses a sending bulb with a protector to read the interior temperature and displays it in one-degree increments. A field-reversible and tempered glass door has a mounted, santoprene gasket creates a tight seal so heat will not escape the cabinet. The heat duct system provides even and consistent heating throughout the cabinet by using a blower fan to circulate hot air throughout the cabinet. Humidity is achieved with a bottom-mounted 2¹/₂-quart water reservoir that has to be manually filled so food will not dry out. The Carter-Hoffmann HL3-18 heated holding cabinet gives you safe and consistent results every use.

Product Details

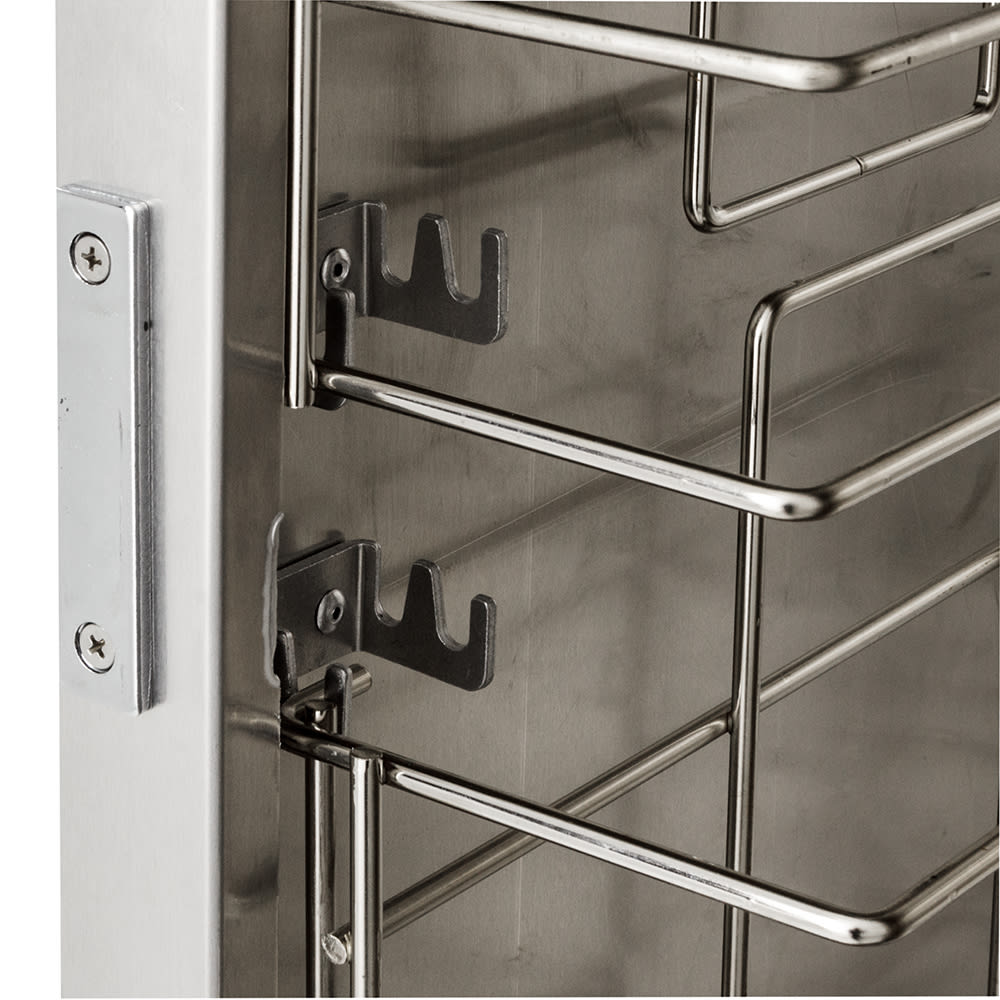

• Universal wire slides are fixed at 3 in.
• Holds as many as (36) 12 in. x 20 in. food pans
• Can hold 18 sheet pans measuring 18 in. x 26 in.
• Riveted, welded, double-wall cabinet construction with the cabinet welded to the base
• Aluminum interior and exterior for durability
• Removable plastic catch pan is mounted under the cabinet base
• Full-width aluminum drip trough with ¹/₂-in. drain
• 1-in.-thick continuous insulation keeps heat inside the cabinet
• 85-190 degrees F temperature range
• Digital thermometer is easy to read and displays temperature in 1-degree increments
• Preheats to 160 degrees F in 30 min.
• Bottom-mounted water reservoir provides passive evaporative humidity to keep food from drying out
• 2¹/₂-qt. water reservoir must be manually filled
• Indicator light lets you know if the cabinet is on or off
• Remote sensing bulb and protector
• 4 casters are 5-in. in dia. with rubber tread, 2 with brakes

Heating System

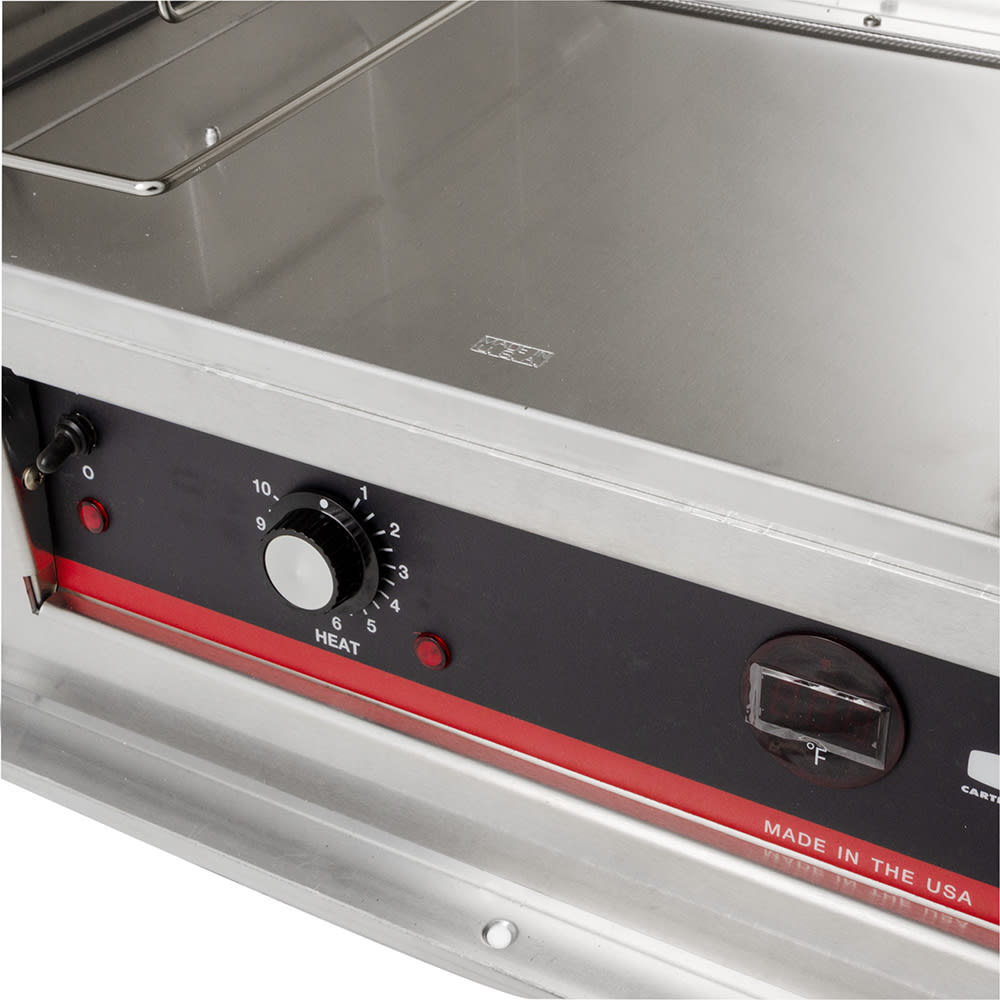

• Single dial controls the heat setting
• Heater is mounted at the bottom with incoloy-sheathed heating elements that distribute heat evenly
• Blower fan circulates air throughout the cabinet
• Heat duct efficiently heats throughout the cabinet for consistent results

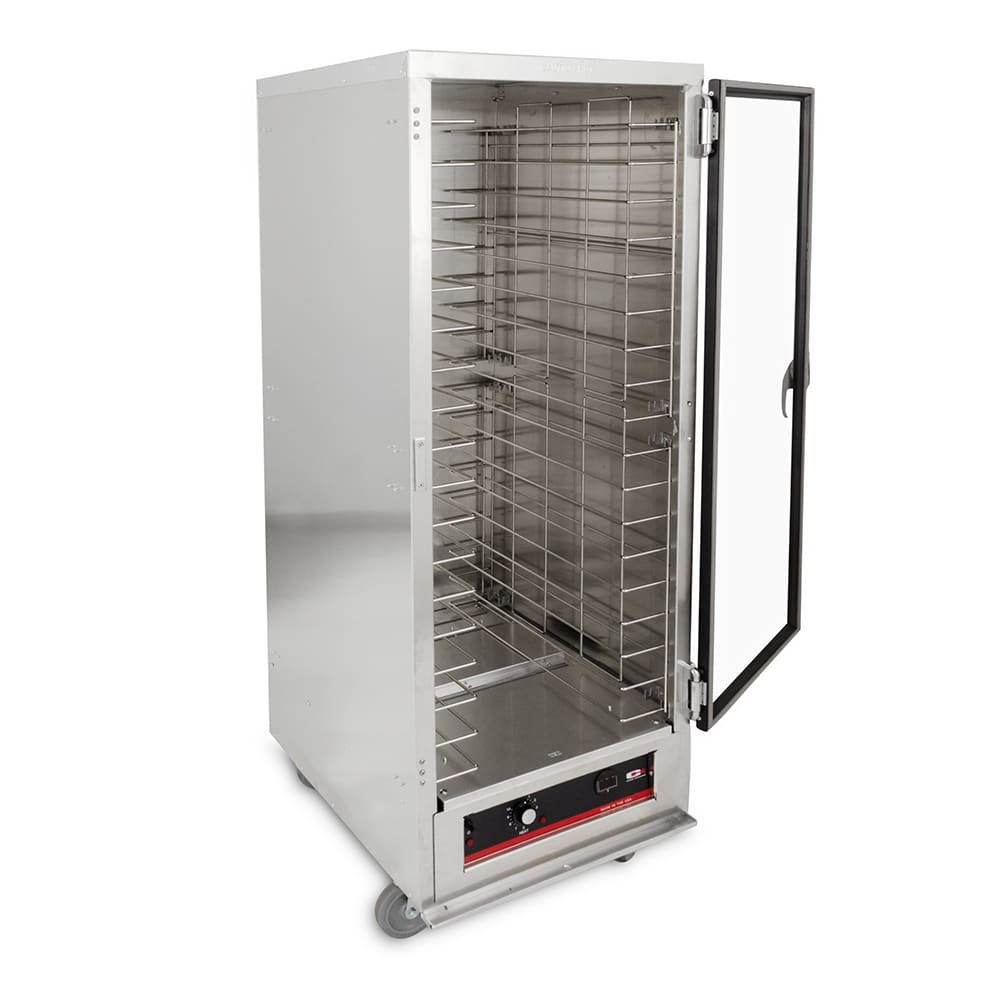

Field-Reversible Door

• Tempered glass door in black anodized aluminum frame is field reversible for your convenience

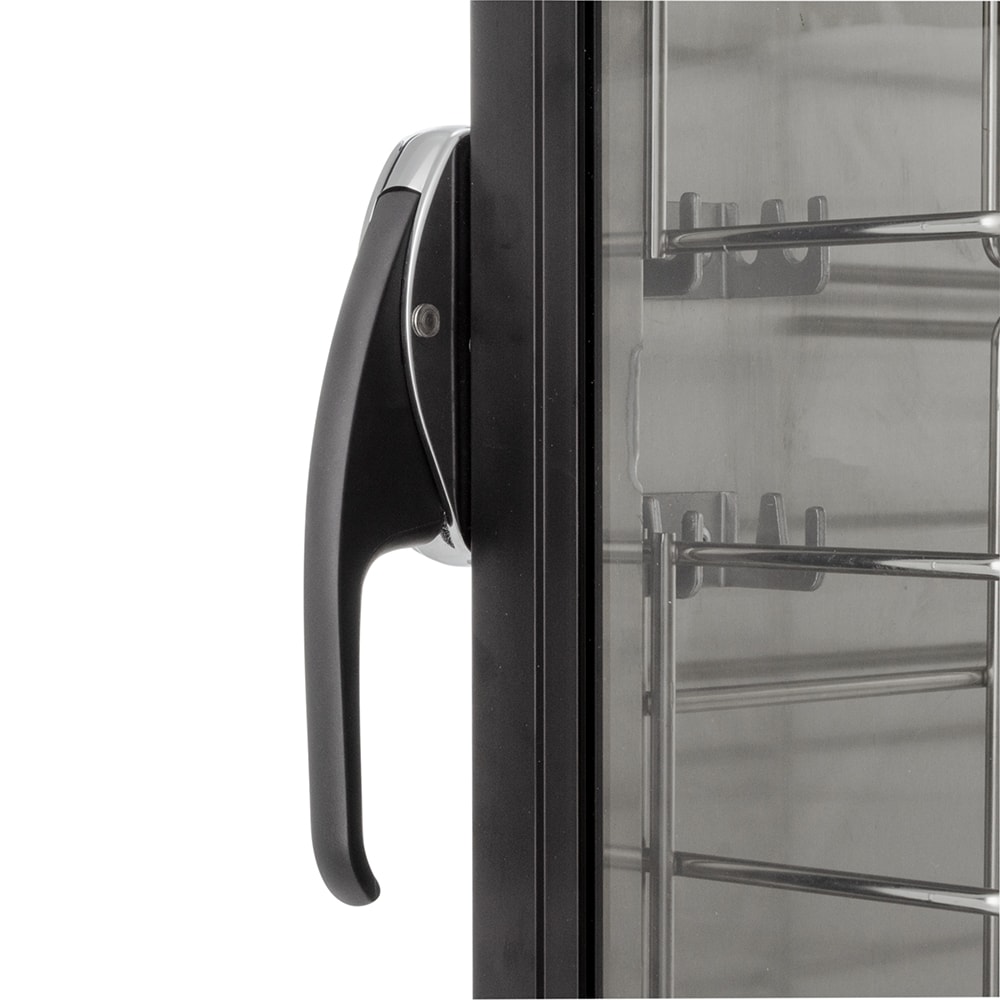

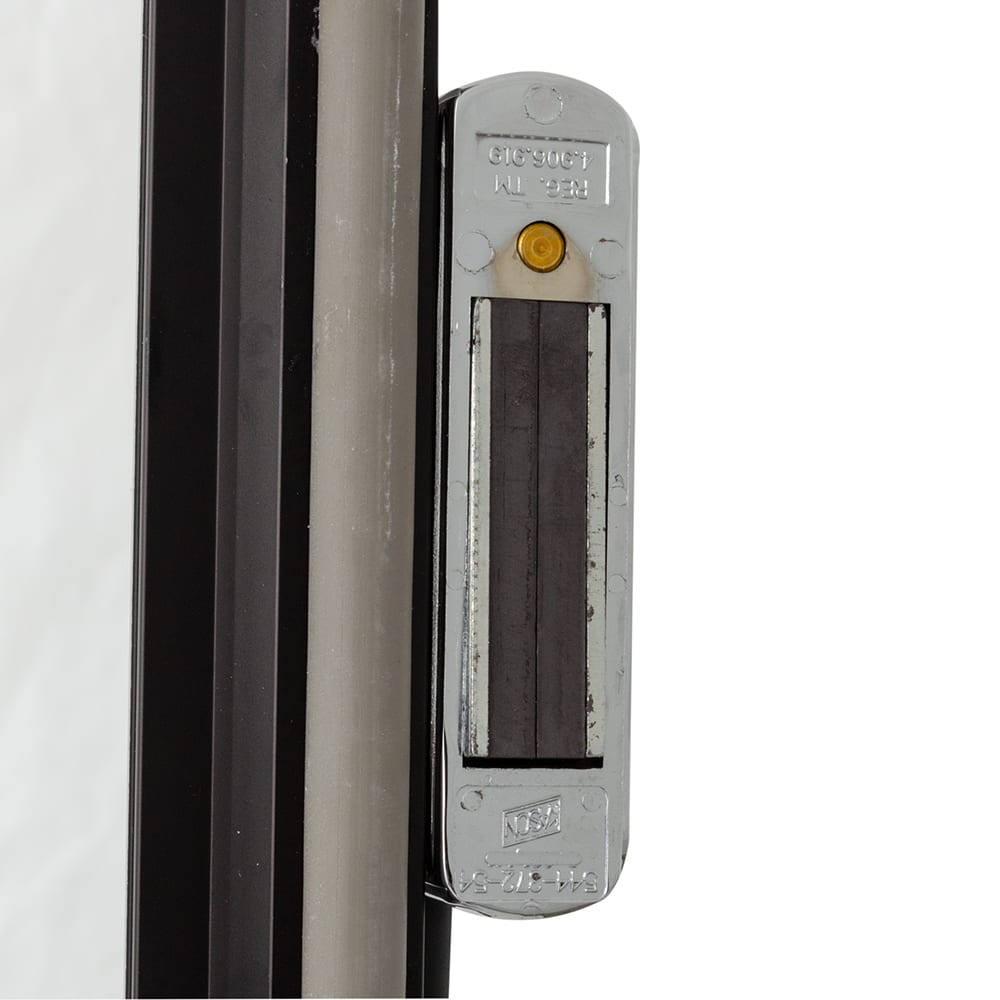

• Heavy-duty, edge-mounted latch has a magnetic catch
• Santoprene gasket is mounted to the door to keep heat from escaping
• Adjustable, chrome-plated hinges

Dimensions & Utilities

• 26¹/₂ in. W x 31¹/₂ in. D x 70⁵/₈ in. H
• 1750 W, 15 A

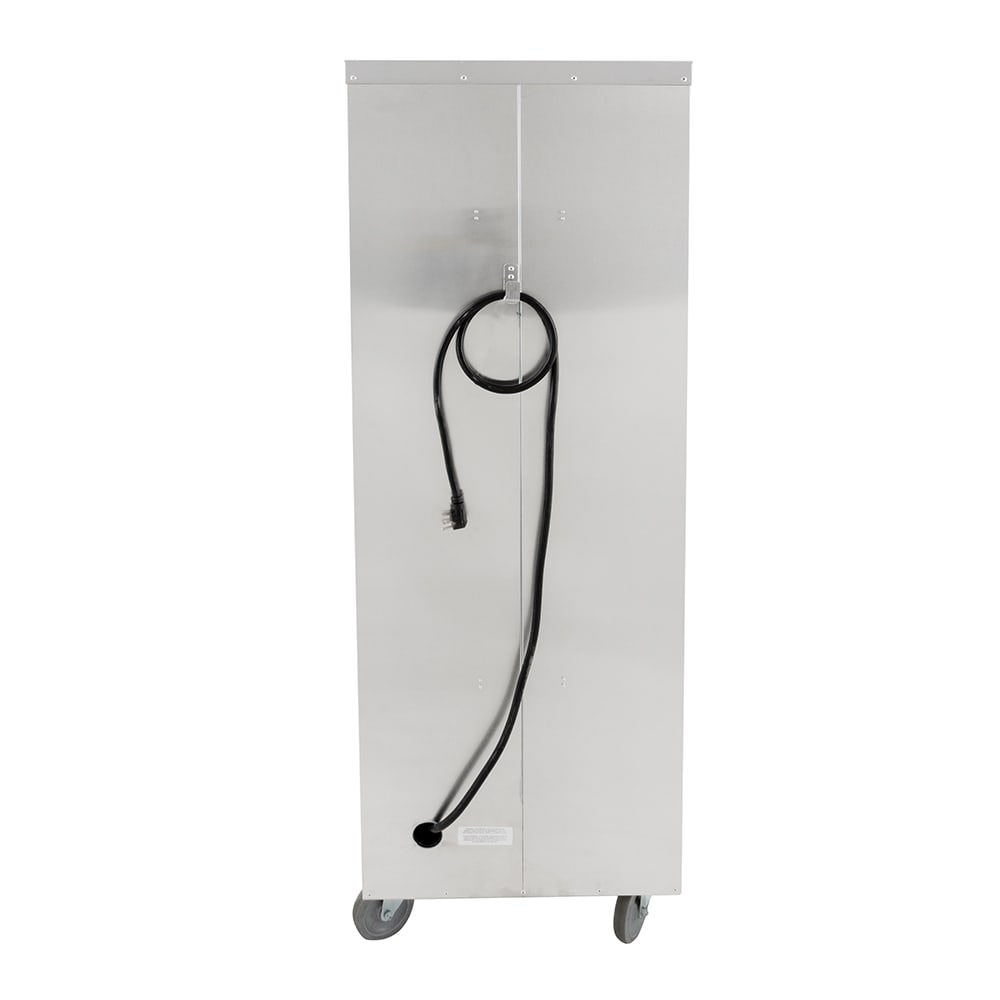

• 120 V/60 Hz/1 ph, 8 ft. cord with a NEMA 5-20P plug

hotLOGIX Holding Cabinet-HL3 Series, one compartment, full height, insulated, (36) 12″ x 20″ or (18) 18″ x 26″ pan capacity, 3″ fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heating system, mechanical controls, digital thermometer, aluminum construction, (4) 5″ swivel casters (2 with brakes), cETLus, ETL-Sanitation (RapidShip)
