Description
Advance Tabco BEV-30-48L Description

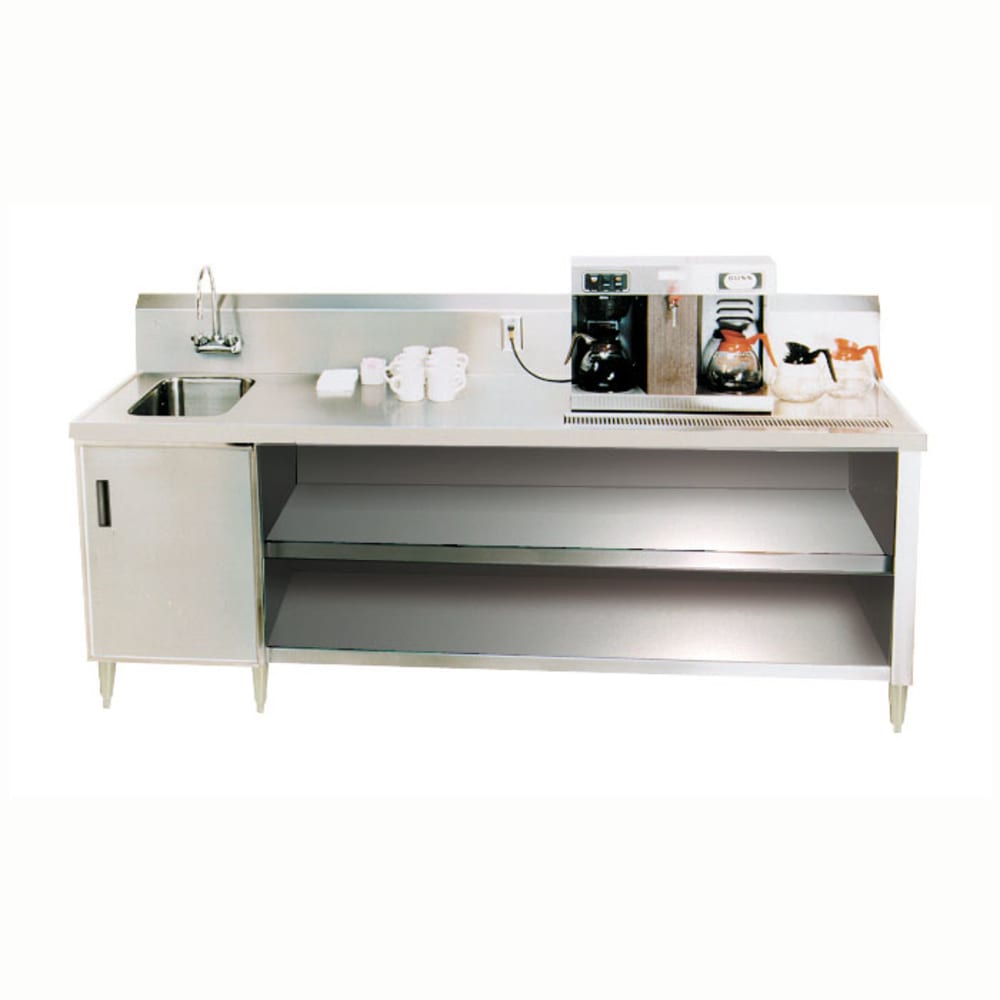

The Advance Tabco BEV-30-48L beverage table body design is furnished with an intermediate, stainless steel shelf and 14-inch by 16-inch by 12-inch deep-drawn sink welded to the top. The sides, back, and shelf are welded together to make a single rigid structure, which makes the multi-purpose unit easy to install. Along with a 10-inch splash with a 2 inch return on the back and a die-embossed, no-drip countertop offset edge with a 1/2 -inch return on three sides, the top forms a flush fit by being assembled to the body and is equipped with a no splash drain plate trough. There is a shelf underneath the BEV-30-48L beverage table for partial storage space, as well as a front hinge door and open back under the sink area, which makes installing plumbing fixtures simple.
Product Details
- 14-gauge, 304 series stainless steel top type
- 18-gauge, 430 series stainless steel body type
- Stainless steel legs with adjustable 1 1/2-in. hex feet
- Splash-mounted, 4-in. O.C. faucet with 8 1/2 -in. gooseneck spout and 1/2 -in. hot and cold supply
- All TIG welded
- Top and exposed surfaces are sound deadened and satin finished by being mechanically polished
- Polished mirror finish on countertop
- Embossed, galvanized, roll-formed hat channels are secured to top with weld studs and structural adhesive
- Features bolt-on stainless steel legs
- Sink on left side of table
- 2-in. x 1-in. no-drip, square die-embossed offset edge countertop with 1/2-in. return on 3 sides
- 10-in. splash with 2-in. return on back side
- Intermediate shelf
- GFI duplex electrical outlet in backsplash
- 16 in. L x 14 in. W x 12 in. H deep drawn sink
- 1 1/2-in. IPS basket drain type
- 5-in. x 1-in. no-splash drain plate urn trough
- Partial undershelf under sink
- Overall dimensions: 48 in. L x 30 in. W x 45 1/2 H
From The Manufacturer
Beverage Table, 48″W, with 14″ x 16″ x 12″ deep sink on left with faucet 4″OC, urn trough 5″ x 18″ with no splash drain plate, 14 gauge 304 series stainless steel top with no drip counter top edge, 10″ x 2″ back splash, enclosed stainless steel base with bottom & intermediate undershelves, stainless steel legs
*Image may not depict product color, inclusions or accessories.
