Description
Advance Tabco 94-24-80-24RL

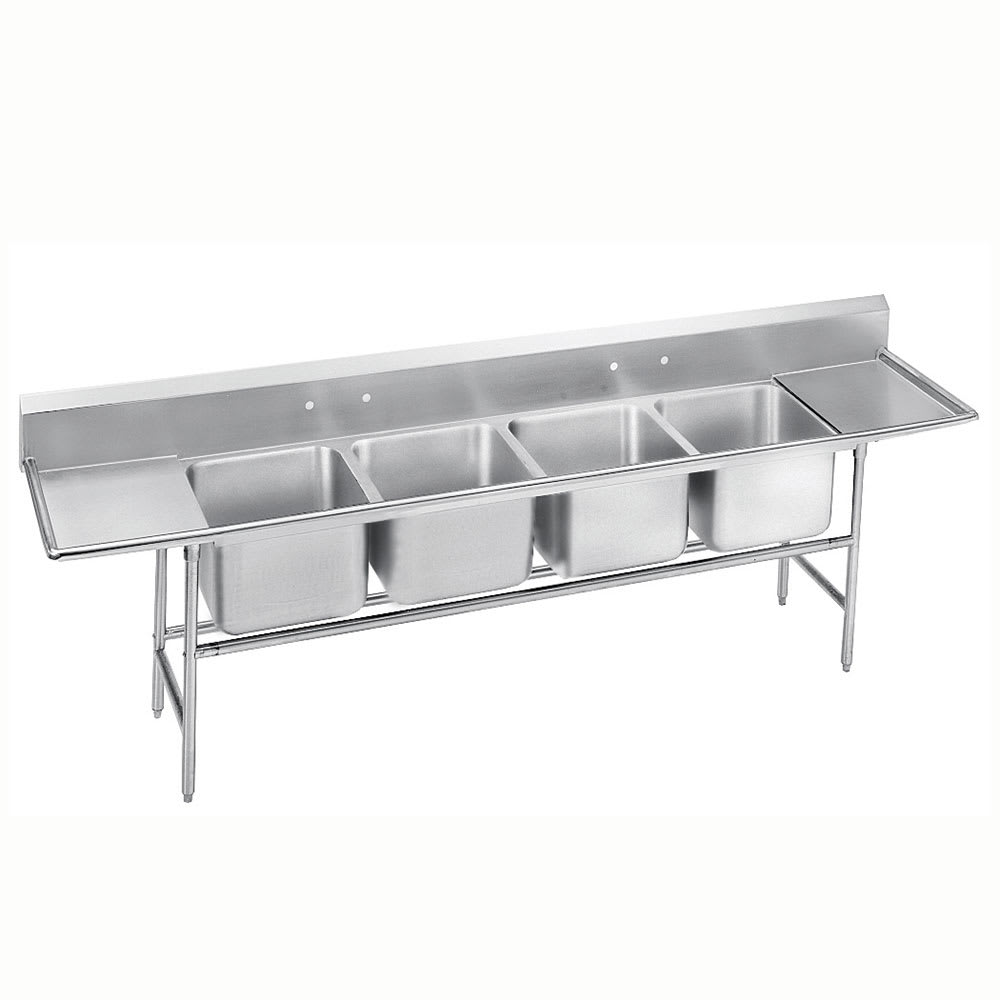

The Advance Tabco 94-24-80-24RL four-compartment sink has deep-drawn sink bowls 20 inches square, with a 24-inch drainboard on each side of the unit. This Spec-Line model is constructed of 14-gauge, 304 stainless steel and is fully TIG welded, ensuring lasting strength and durability. The placement of the welded leg assembly guarantees the sink is sturdy and directly supports the unit’s column load requirement. The front and rear cross braces are adjustable, with leg castings that secure the left to the right.
The tile edge makes installing and water sealing the unit easier, and sink covers and poly-vance cutting boards are accommodated since the bowl surface is recessed. The Advance Tabco 94-24-80-24RL four-compartment sink has an 11-inch backsplash that keeps water and messes from getting all over other surfaces. Faucet holes have been cut into the splash on 8-inch centers and each bowl has a center-mounted, 11/2-inch IPS basket-type drain.
Product Details
- 14-gauge, 304 stainless steel construction enhances durability
- All TIG welded for durability
- Welded areas are polished to a satin finish to match adjacent surfaces
- Tile edge makes installation easier
- Welded leg assembly placement guarantees that the unit is sturdy and directly supports the column load requirement
- Adjustable rear and front cross bracing, with leg castings to secure the right to left
- Gussets and channels are made of stainless steel for corrosion resistance
- 15/8 in. dia. tubular, stainless steel legs
- 1 in. stainless steel, adjustable bullet feet
- 11-in. backsplash keeps water and messes from getting on other surfaces
- 4 deep-drawn, 20 in. x 20 in. sink bowls have liberal, 3-in. radii
- Ideal for washing dishes and pots
- 14-in. water level and 17-in. flood level
- Faucet holes on 8-in. centers (faucets not included)
- 1/2 in. IPS basket-type drain
- Overall dimensions: 138 in. L x 27 in. W x 45 in. H
From The Manufacturer
Regaline Sink, 4-compartment, with left & right-hand drainboards, 20″ front-to-back x 20″ wide sink compartments, 14″ deep, with 11″ high splash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 24″ drainboards, 1″ adjustable bullet feet, 14 gauge 304 series stainless steel, overall 27″ F/B x 138″ L/R, NSF (requires 2 faucets)
*Image may not depict product color, inclusions or accessories.
