Description

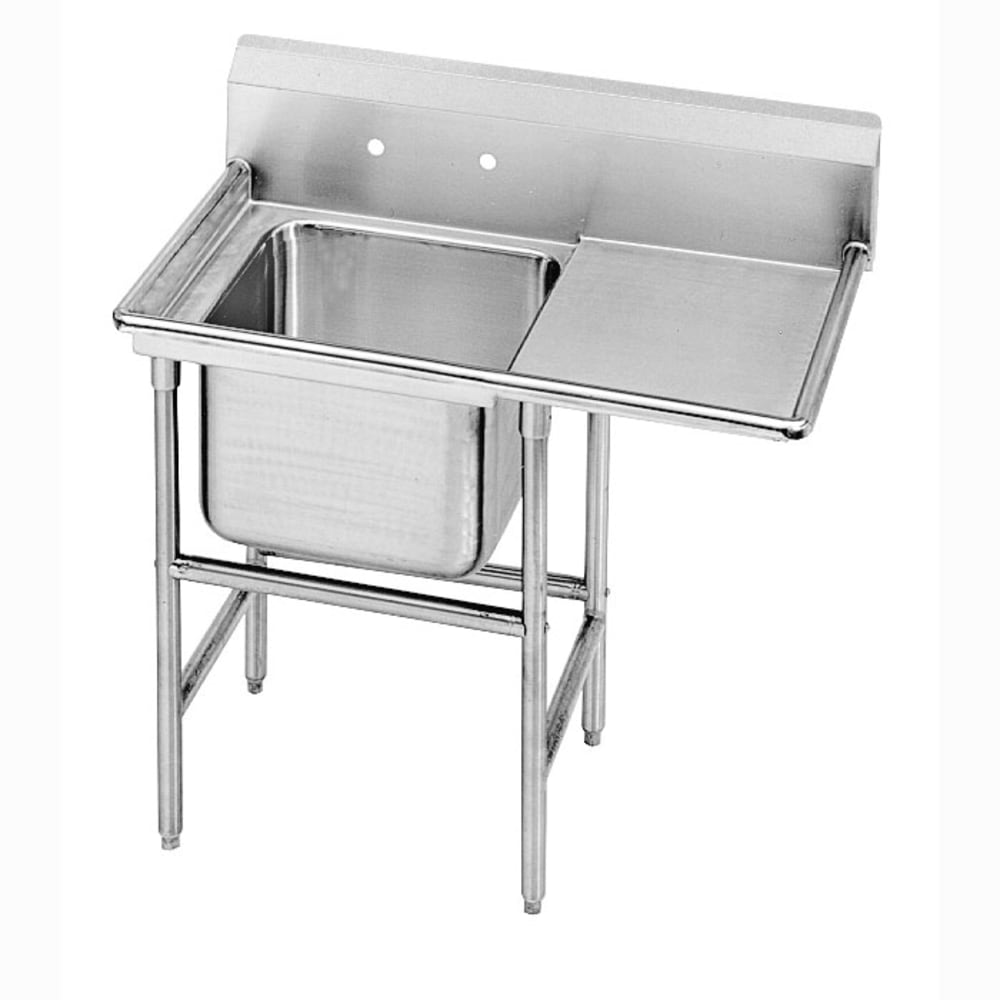

Advance Tabco 94-1-24-18R
The Advance Tabco 94-1-24-18R Regaline sink features a single bowl unit design that accommodates Poly-Vance cutting boards and sink covers. This sink bowl has a large 3-inch radius and an integral right-hand drainboard with a splash. There is a tile edge to ease sink installation, and the placement of the welded leg assembly guarantees stability and furnishes direct support of the column load requirement for the entire sink unit. Since the Advance Tabco 94-1-24-18R Regaline sink is part of the ‚Äú940″ series, it is supplied with an adjustable front and rear cross brace featuring leg casting to secure the left to right cross bracing.
Product Details
- Single bowl unit with large liberal 3-in. radius
- Right-hand 18-in. drainboard with splash
- 1-piece deep drawn sink bowl
- Tile edge for easy installation
- Column load requirement for the entire sink unit is supported and stable because of the placement of the welded leg assembly
- Has an adjustable front and rear cross brace with leg casting to secure left to right cross bracing
- 14-gauge, ‚Äú304″ stainless steel
- 11-in.-high splash
- All TIG welded
- Welded areas are blended to a satin finish to match the adjacent surfaces
- Gussets are welded to a die-embossed reinforcing channel
- 15/8-in.-dia. tubular stainless steel legs with stainless steel gussets and channels
- 1-in. adjustable stainless steel bullet feet
- 14-in. water level
- 1/2 in. IPS hot and cold
- Faucet holes on 8-in. centers
- Faucets are not included
- Waste drains are 11/2 in. IPS S/S basket type, located in the center of the sink bowl
- Overall dimensions: 40 in. L x 27 in. W x 45 in. H
From The Manufacturer
Regaline Sink, 1-compartment, with right-hand drainboard, 20″ front-to-back x 16″W sink compartment, 14″ deep, with 11″H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 18″ drainboard, 1″ adjustable bullet feet, 14 gauge 304 stainless steel, overall 27″ F/B x 40″ L/R, NSF
*Image may not depict product color, inclusions or accessories.
